Dental Micromotor vs. Jewelry Micromotor: What's the Difference

I.Analysis of Commonalities: Shared Underlying Technology


At first glance, setting a dental laboratory unit next to a bench jeweler’s rotary setup reveals striking similarities. This is no coincidence—jewelers have long adapted dental lab equipment for micro-carving and stone setting because the core mechanics are virtually identical.

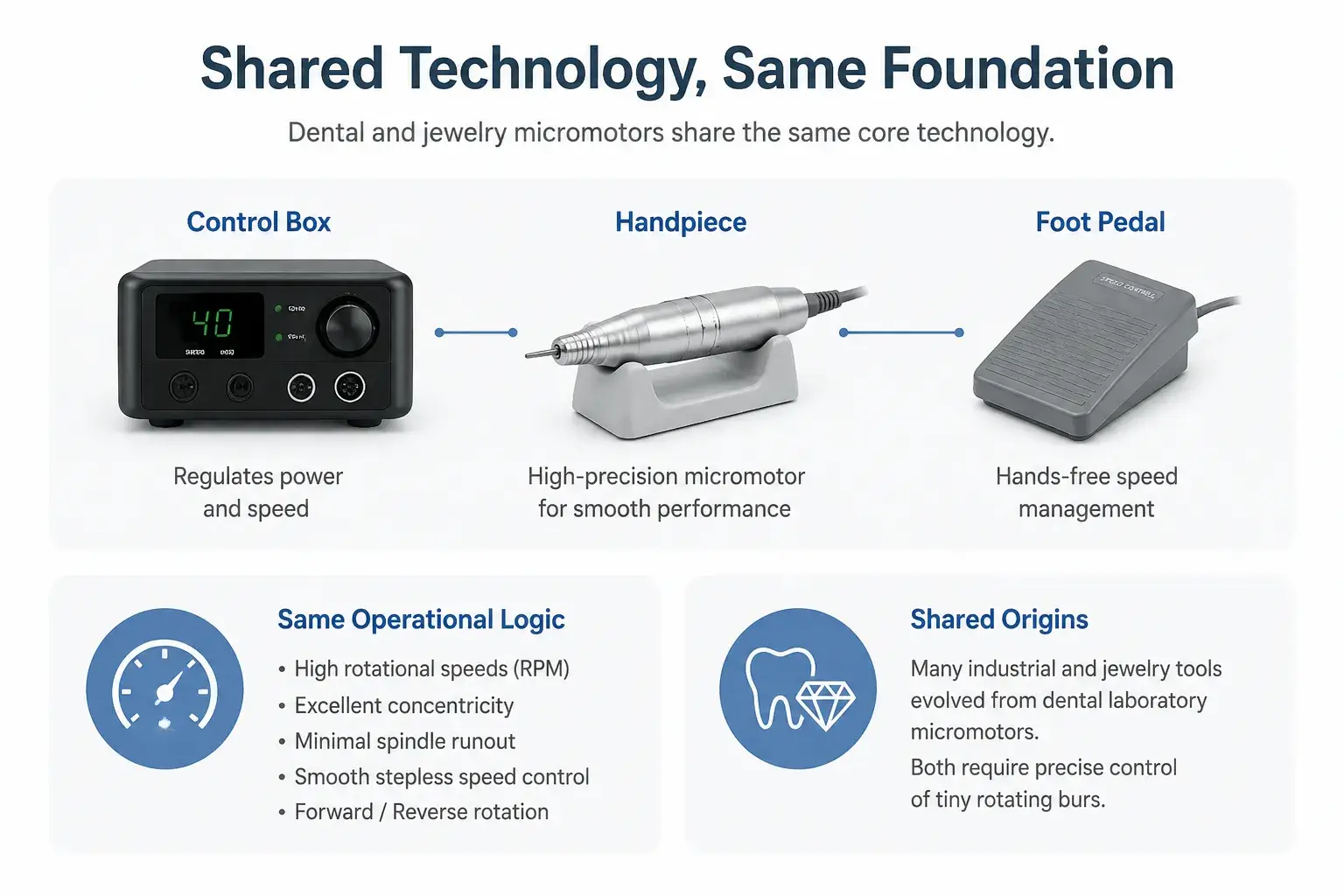

1. Core Structure: Both systems consist of three main components: a central control box that regulates power and speed, a high-precision drive handpiece housing the micro-motor, and a foot pedal for hands-free speed management.
2. Operational Logic: Both rely on high rotational speeds (RPM), exceptional concentricity, and minimal spindle runout. They offer smooth, stepless speed adjustments and bidirectional rotation (forward/reverse) to accommodate various bur angle cuts.
3. Shared Origins: Many industrial and jewelry grinding tools essentially evolved from dental laboratory micromotors. Because both disciplines require delicate control over tiny rotating burs, they share a natural overlap in their basic hardware architecture.

II. Comparison of Differences: Four Key Dimensions

While their foundation is shared, the daily working environments of a dental technician and a bench jeweler place fundamentally different demands on their equipment.

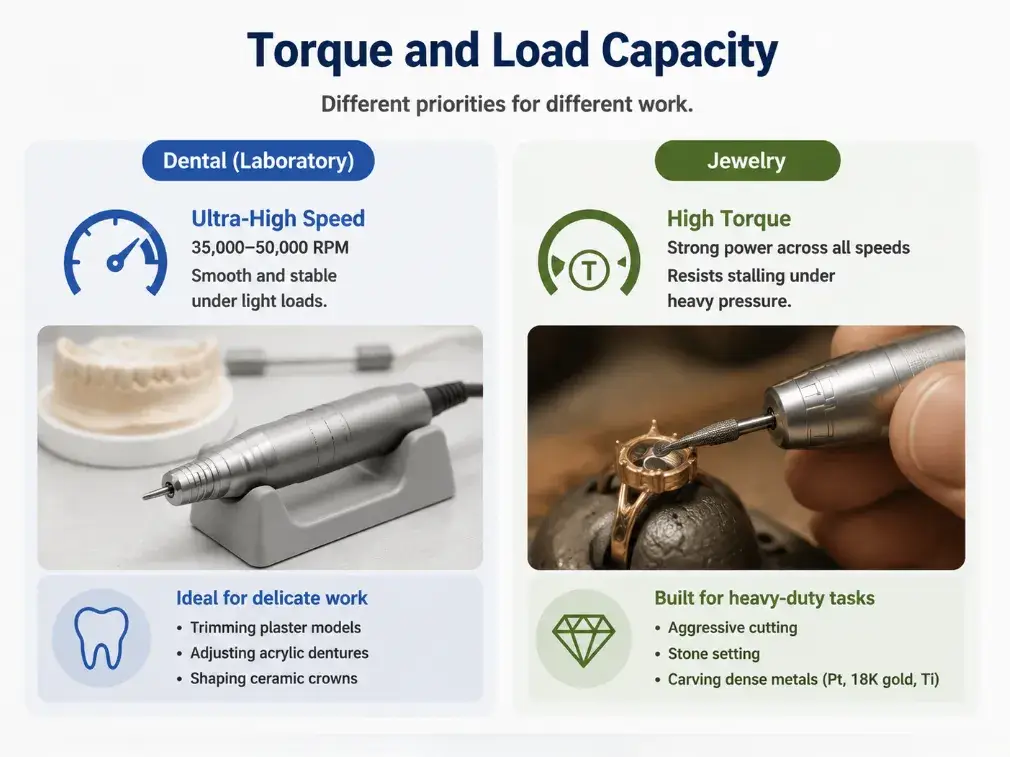

1. Torque and Load Capacity

1. Dental: Prioritizes ultra-high speed (often reaching 35,000–50,000 RPM) and stable, smooth output under light loads. These parameters are ideal for delicate operations such as trimming plaster models, adjusting acrylic dentures, or shaping ceramic crowns.
2. Jewelry: Emphasizes high torque output (measured in N·cm) across both low and full speed ranges. When aggressive cutting, stone setting, or carving through dense platinum, 18K gold, or titanium, the handpiece encounters heavy resistance. Higher torque prevents the motor from stalling under heavy pressure.

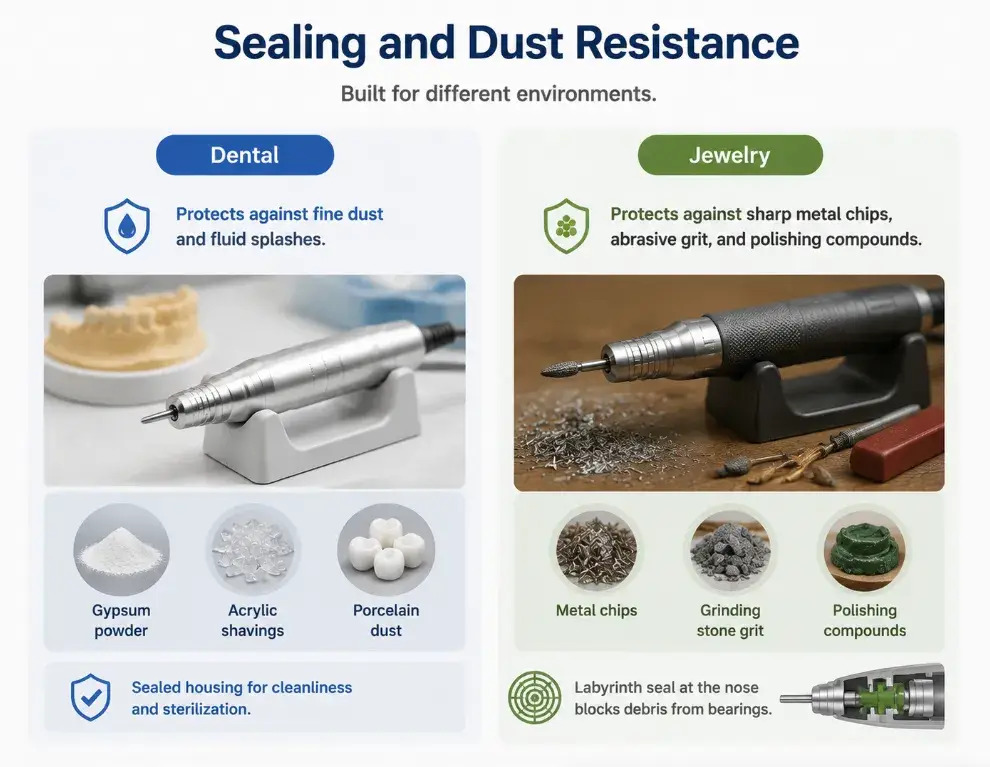

2. Sealing and Dust Resistance

1. Dental: Engineered to handle extremely fine gypsum powder, acrylic shavings, and porcelain dust. Clinical handpieces used near patients also feature sealed housings to withstand fluid splashes and autoclave heat sterilization.
2. Jewelry: Operates in an environment filled with sharp metallic filing chips, abrasive grinding stone grit, and sticky, oil-based polishing compounds (like rouge or tripoli). Consequently, a jewelry handpiece requires a specialized labyrinth seal at the front nosepiece to block abrasive debris from penetrating the bearings.

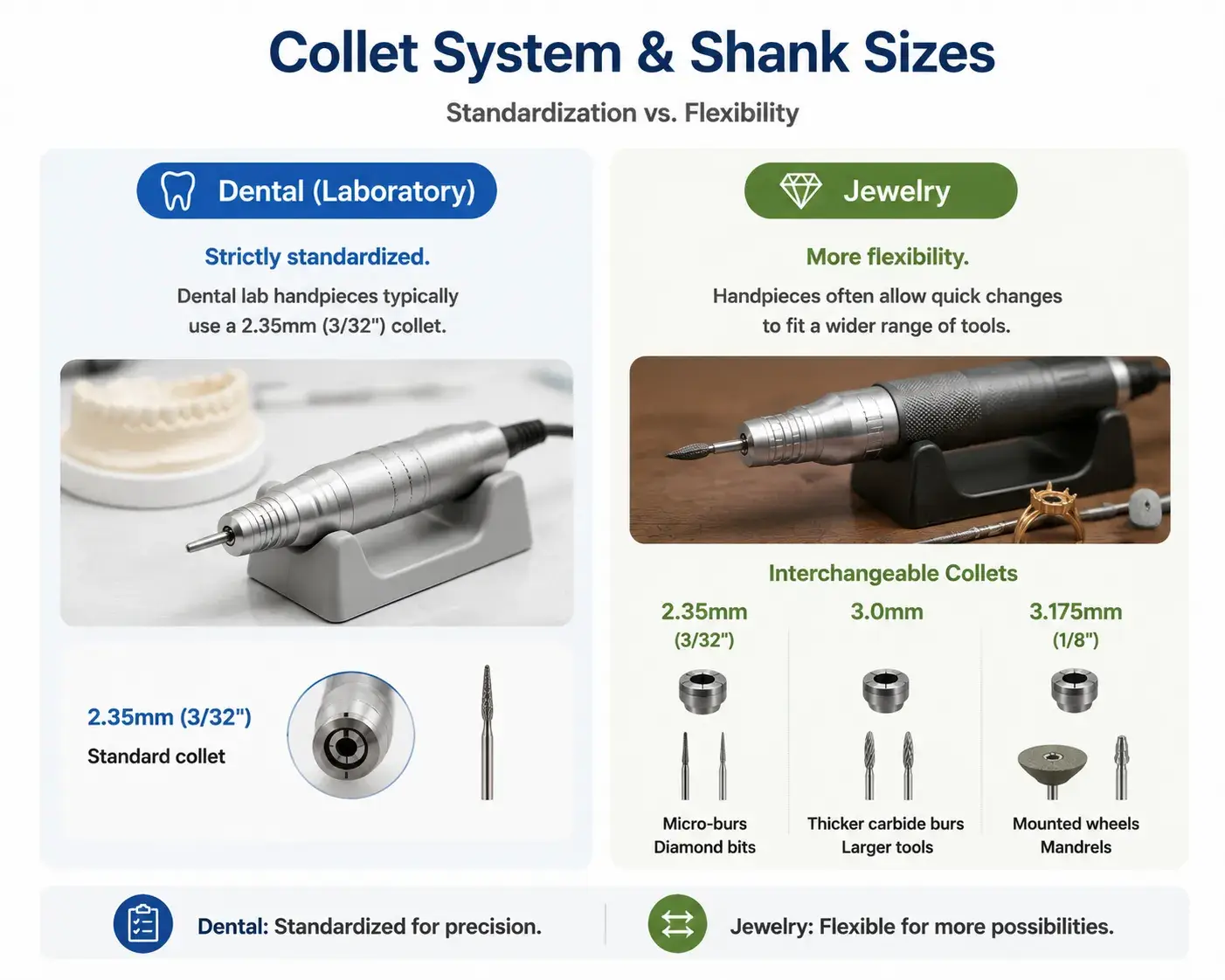

3. Collet System & Shank Sizes

1. Dental: Strictly standardized. Dental lab handpieces typically rely on a 2.35mm (3/32") collet, while clinical high-speed handpieces use 1.6mm friction-grip burs.
2. Jewelry: While 2.35mm remains the dominant standard for micro-burs and diamond bits, jewelers frequently need flexibility. Handpieces often allow quick changes to 3.0mm or 3.175mm (1/8") collets to secure thicker carbide burs, unmounted grinding wheels, or heavy-duty mandrels.

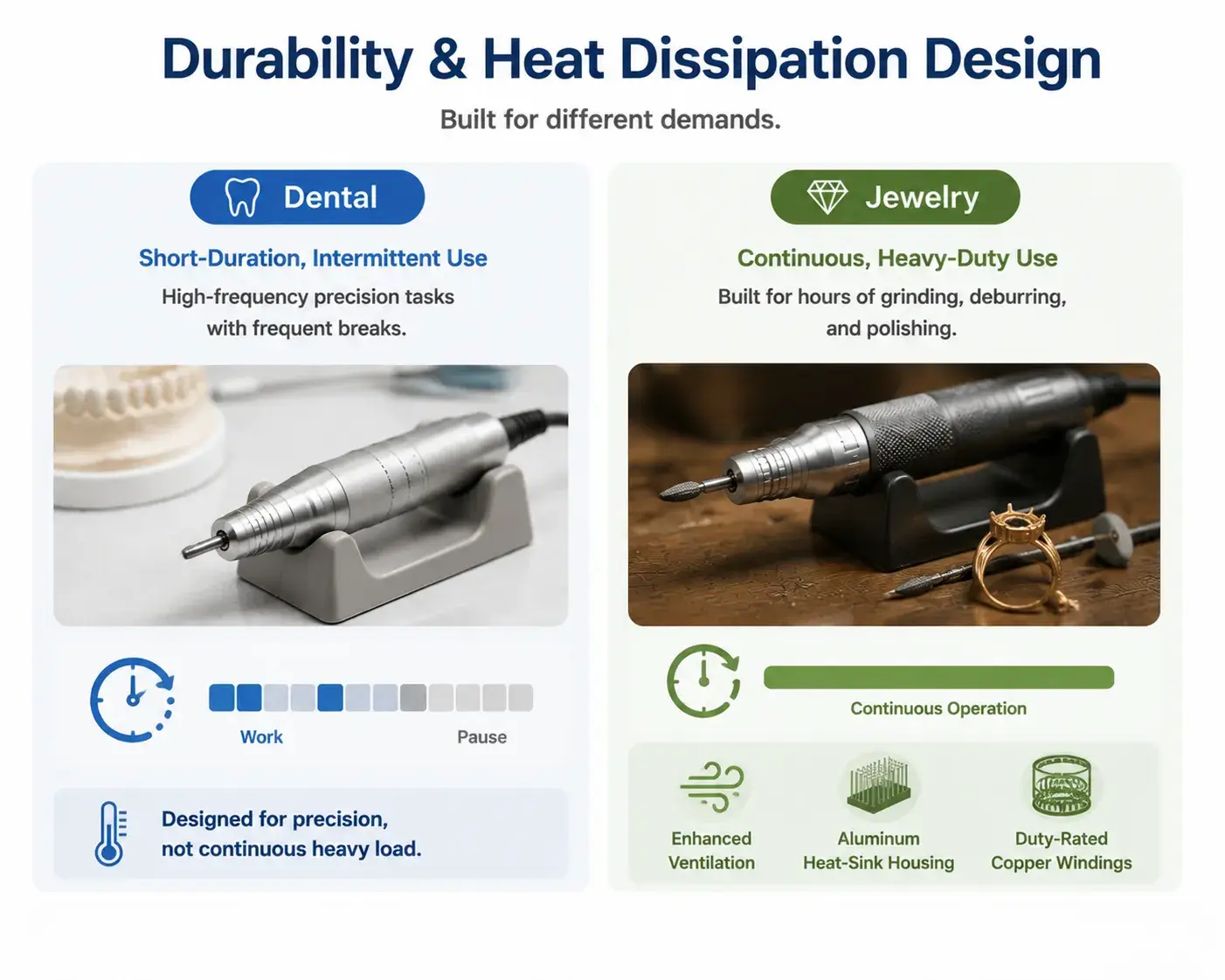

4. Durability and Heat Dissipation Design

1. Dental: Tailored for short-duration, high-frequency, intermittent precision tasks. The motor pauses frequently between minor adjustments.
2. Jewelry: Built for continuous heavy-duty work. A jeweler may spend hours continuously grinding, deburring cast sprues, or lapping metal surfaces. These units feature enhanced internal ventilation, aluminum heat-sink housings, and duty-rated copper windings to prevent overheating during extended runs.

III. Summary Comparison Matrix

IV. Selection Recommendations: Choosing the Right Tool

Guidance by Operation Type

1. Choose a Dental/Precision-Grade Unit: If your work revolves around micro-pave stone setting, intricate wax carving, detailed dental restorations, or delicate engraving where zero spindle vibration is paramount.
2. Choose an Industrial/Jewelry-Grade Unit: If you require heavy material removal, sprue grinding, continuous surface polishing, or frequently work with tough alloys like platinum or stainless steel.

Hardware Configuration Advice

1. Brushless vs. Brushed Motors: Traditional brushed micromotors are cost-effective, easy to maintain, and offer reliable power. However, modern brushless micromotors deliver higher torque at lower speeds, generate virtually no carbon dust, operate quietly, and offer a much longer operational lifespan under heavy daily use.
2. Expanding Compatibility: If your workshop handles diverse tasks, consider a control box compatible with multiple handpiece types, or select a handpiece model featuring quick-change collet mechanisms.
