Stop Nail Drill Overheating During Long Work Sessions

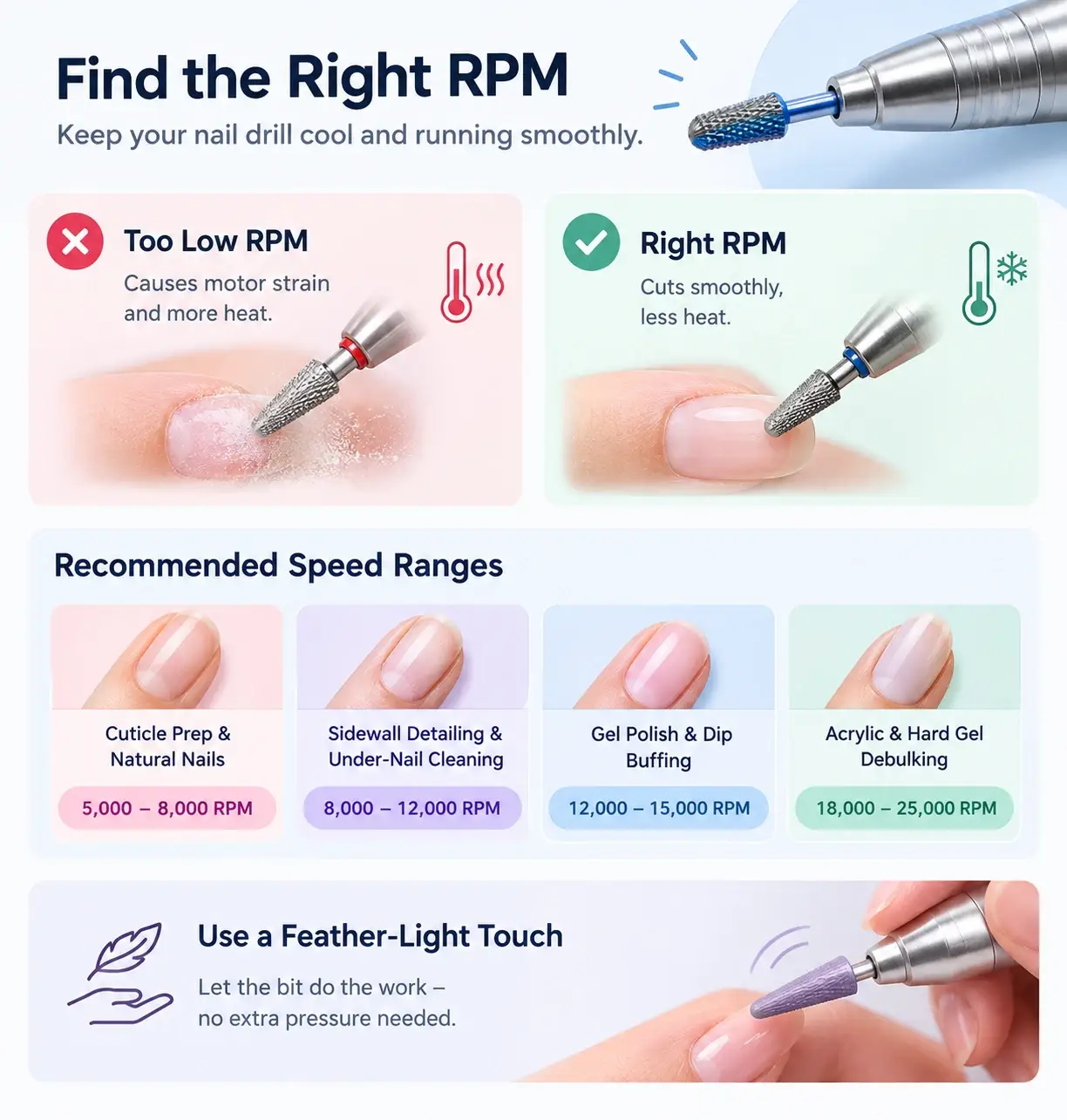

1.Adjust RPM to Prevent Motor Overheating


Dialing down your speed during heavy product removal is a counterproductive myth that accelerates tool breakdown.

1. Debunk the Low-RPM Myth: Forcing an e-file at low speeds (6,000–10,000 RPM) against hard acrylic or dense builder gel pushes the motor into near-stall conditions. The control unit delivers maximum current to fight the physical drag, dumping excessive amperage directly into the motor windings as pure heat. Running an optimal rotational speed allows the cutter teeth to carve through material without choking the drive shaft.
2. Maintain Optimized Speed Ranges:
   • Cuticle Prep & Natural Nails: 5,000 – 8,000 RPM (fine control with negligible friction).
   • Sidewall Detailing & Under-Nail Cleaning: 8,000 – 12,000 RPM (delicate material removal without grabbing).
   • Gel Polish & Dip Overlay Buffing: 12,000 – 15,000 RPM (rapid smoothing without melting top layers).
   • Acrylic & Hard Gel Bulk Debulking: 18,000 – 25,000 RPM (clean chip ejection with minimal torque resistance).
3. Execute a Feather-Light Touch: Never rely on arm strength or downward force to push a bit through enhancements. Use a stable fulcrum finger anchor and guide the spinning bit lightly across the surface, letting high rotational speed do all the cutting work.

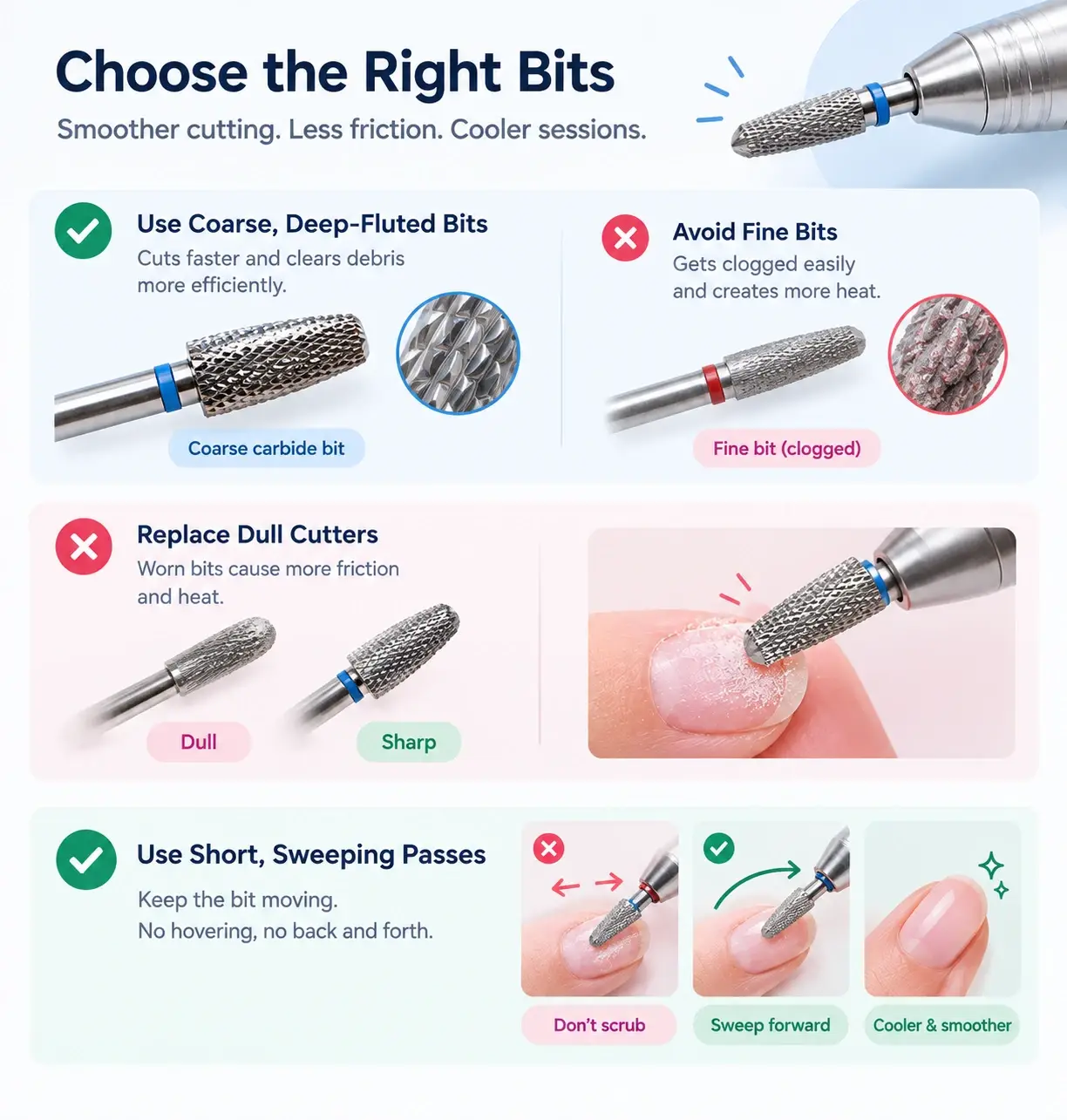

2.Choose Aggressive Bits for Cooler Sessions


The geometry, material, and sharpness of your cutting accessories determine how much friction transfers into your handpiece.

1. Select Deep-Fluted Coarse Bits: Fine-grit bits pack quickly with gel and acrylic shavings, a failure known as flute loading. Clogged flutes cannot slice enhancements; they skid and burn against the nail plate, generating massive surface friction. Always use coarse or extra-coarse cross-cut carbide or heat-dissipating ceramic bits for bulk removal to fling heavy debris clear of the working path.
2. Retire Dull Cutters Immediately: Worn, rounded cutting flutes slide across product rather than slicing chips, requiring continuous passes and heavy pressure to make progress. This continuous friction travels straight up the solid steel bit shank into the front bearings. Replace working bits as soon as you notice diminished cutting efficiency.
3. Work in Short, Sweeping Passes:
   • Avoid hovering or scrubbing back and forth across a single spot on the nail plate.
   • Execute uniform, unidirectional, floating strokes that allow each section of product a brief cooling pause.
   • Keep the bit moving continuously to protect your client's nail bed from thermal spikes and stop heat conduction into the chuck.

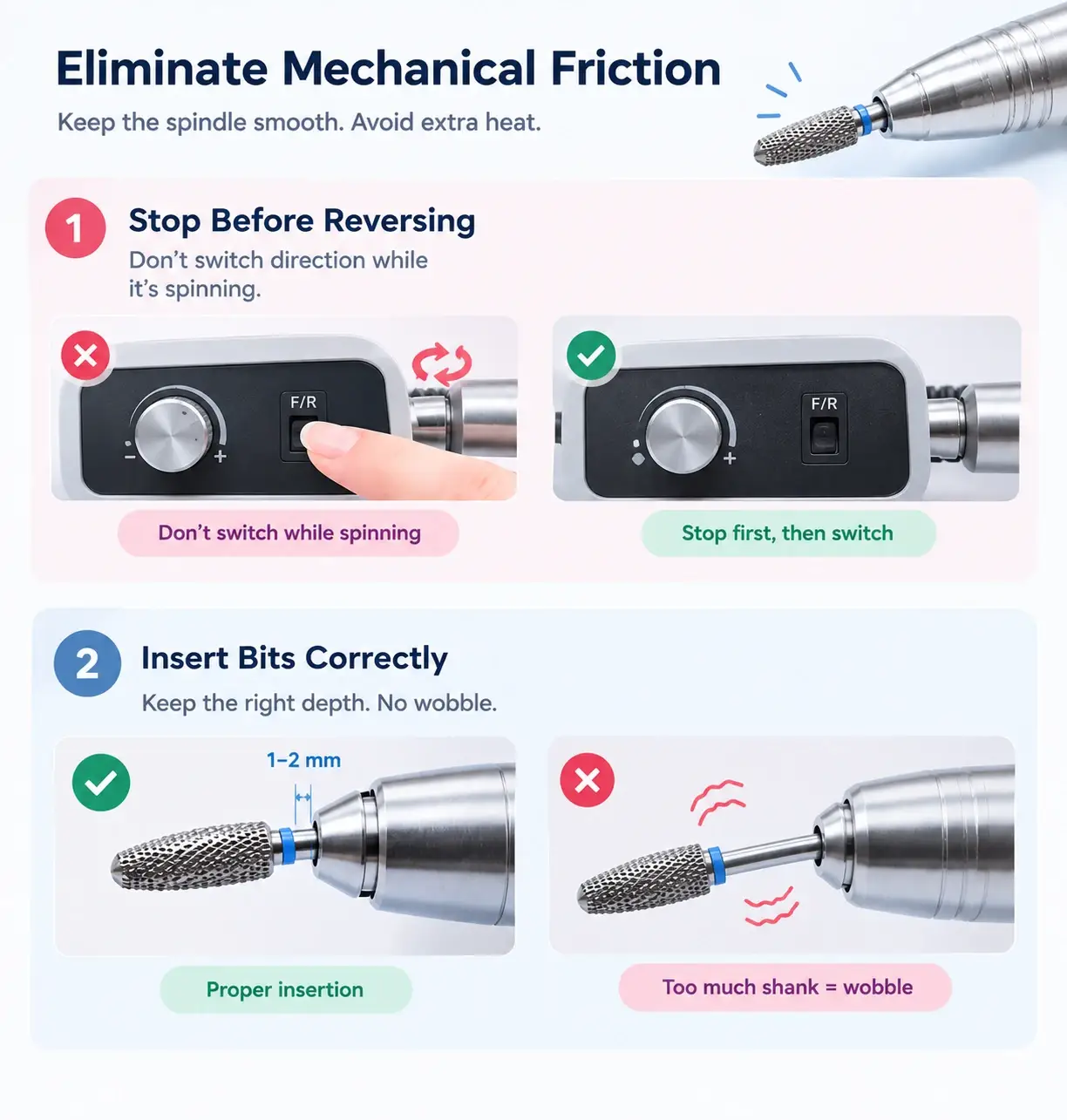

3.Eliminate Mechanical Friction During Long Sessions


Hidden mechanical resistance inside the spindle assembly causes extreme thermal rise regardless of your filing technique.

1. Halt the Spindle Before Reversing Direction: Never toggle the Forward/Reverse (F/R) directional switch while the handpiece is actively spinning. Flipping directions under load creates an intense burst of Counter-Electromotive Force (Counter-EMF), sending an electrical shockwave through the armature that spikes coil and circuit board temperatures in fractions of a second. Always bring the speed dial to a complete stop before changing rotational direction.
2. Eliminate Cantilever Wobble from Overhanging Shanks:
   • Proper Insertion: Seat bit shanks deeply into the chuck mechanism, leaving just 1 to 2 mm of clearance between the bit head and collet face to avoid rubbing.
   • Vibration Hazard: Leaving excess shank exposed creates a lever-arm effect at high speeds. This off-center wobble induces severe micro-vibrations that transfer completely into the front bearings as friction heat.

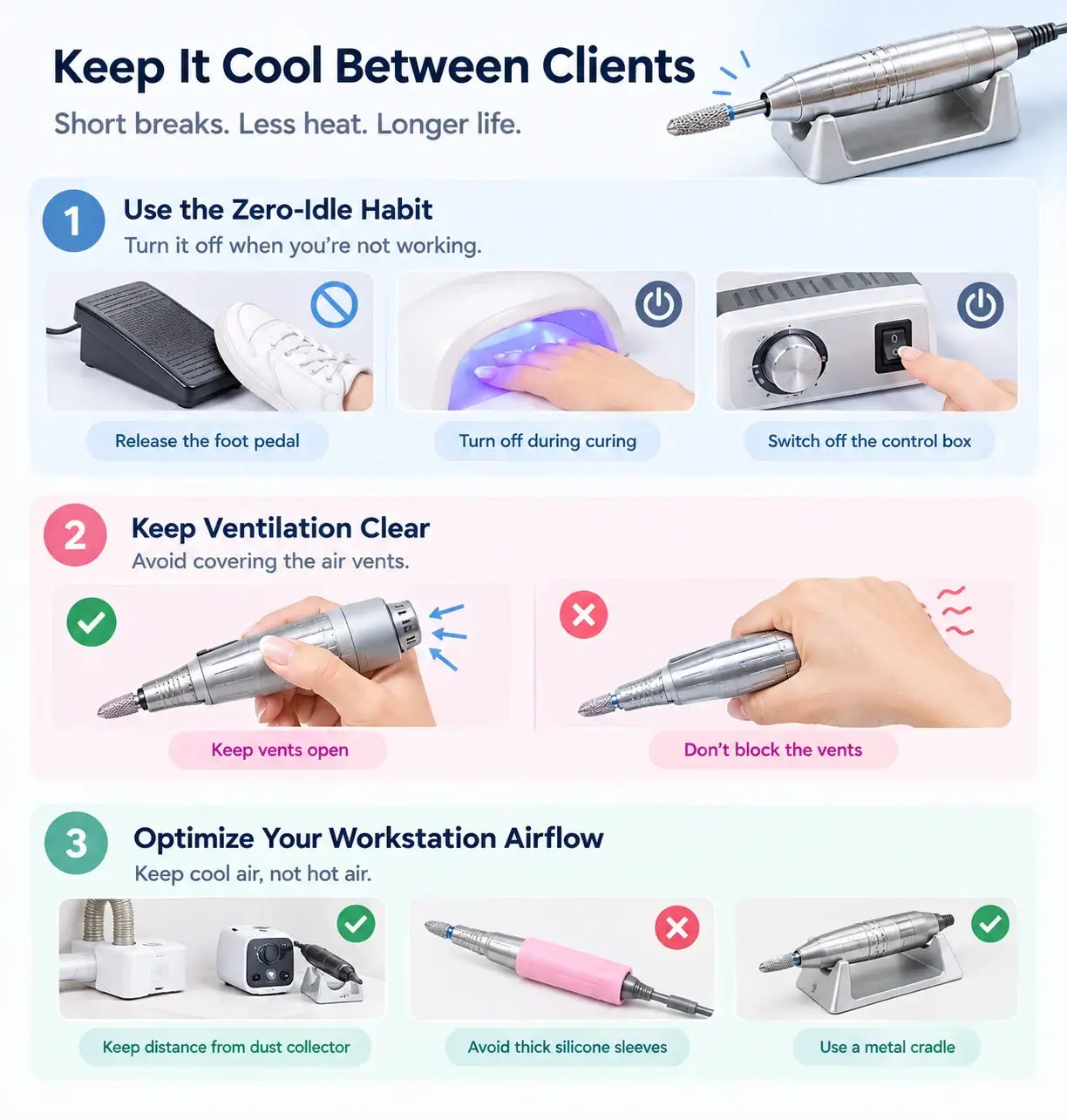

4.Micro-Cool the Handpiece Between Clients


Strategic adjustments to your workstation layout and service pacing provide essential intervals for convective cooling.

1. Enforce the Zero-Idle Habit: Leaving a handpiece spinning on its cradle while you search for tools or inspect a client's sidewall generates unnecessary electrical heat without any productive benefit.
   • Release the variable foot pedal the moment the bit leaves the nail plate.
   • Switch the handpiece off while the client cures layers in the LED/UV lamp (yielding 30 to 60 seconds of zero-draw cooling).
   • Turn off the control box while performing manual filing, cuticle pushing, or surface cleansing.
2. Clear Blocked Handpiece Ventilation Ports: Hand fatigue often causes technicians to slide their fingers back along the barrel, inadvertently sealing rear exhaust vents with their palm or thumb webbing. Check your grip periodically to ensure ventilation paths remain open.
3. Reconfigure Workstation Airflow:
   • Position your drill console and handpiece cradle away from the warm exhaust airstream of built-in or tabletop dust collectors.
   • Discard thick silicone handpiece sleeves that trap heat inside the metal casing.
   • Rest your handpiece on an open metal or aluminum desktop cradle that naturally draws thermal energy away from the shell.

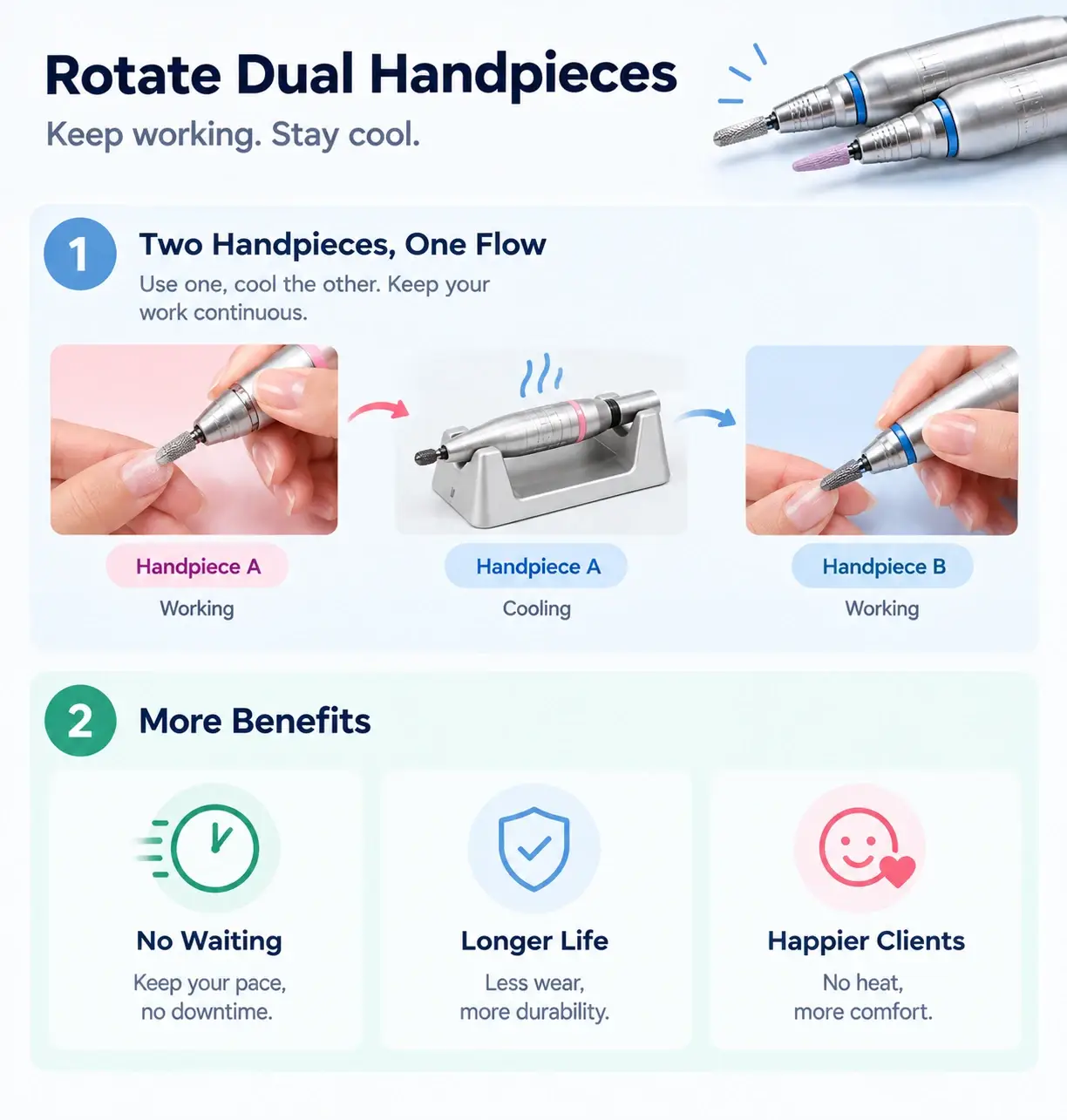

5.Rotate Dual Handpieces During Peak Sessions


For high-volume nail technicians servicing back-to-back clients all day, alternating tools is the only guaranteed way to overcome physical heat barriers.

1. Implement a Two-Handpiece Shift Rotation: Connect a secondary compatible handpiece to your setup. Use Handpiece A for your first client, then set it aside to cool on an open-air rack while using Handpiece B for your second client.
2. Eliminate Appointment Downtime:
   • Zero Waiting Periods: You never have to pause midway through debulking to let a scorching tool cool down.
   • Extended Service Life: Spreading mechanical duty across two handpieces prevents high-temperature bearing wear and preserves internal lubricants.
   • Guaranteed Client Comfort: Clients never experience uncomfortable heat radiating from the tool near their fingers.

6.Stop Acrylic Dust Overheating the Bearings


Fine cosmetic dust is the most common cause of premature mechanical failure and abnormal operating heat in rotary tools.

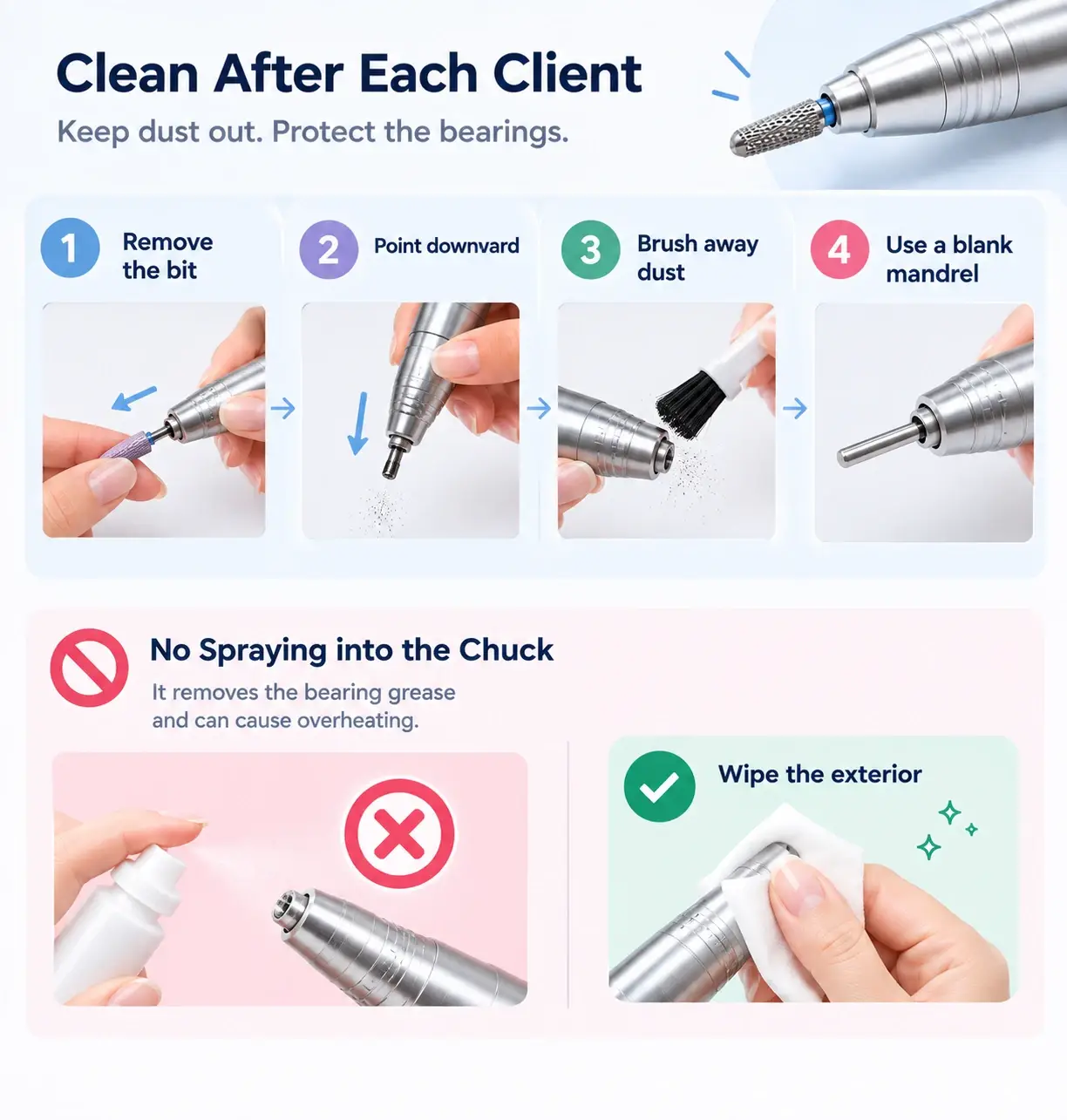

1. Perform a 10-Second Post-Client Cleanse:
   • Remove the cutting bit immediately after completing each service.
   • Point the handpiece nose cone downward toward the floor so gravity assists dust removal.
   • Use a stiff nylon dusting brush to sweep away acrylic and gel residue from the collet opening and front seams.
   • Insert a blank storage mandrel into the chuck to protect internal spring mechanisms from dust intrusion.
2. Never Spray Solvents Directly into the Chuck Opening: Spraying alcohol or disinfectant into the nose cone strips away the high-temperature synthetic grease sealed inside the bearings. Running unlubricated ball bearings creates extreme metal-on-metal friction, causing the handpiece to screech, overheat, and seize up within minutes. Always sanitize handpieces by wiping the exterior housing with a well-wrung disinfectant wipe.

7.When Session Overheating Means Bearing Damage


When a handpiece continues to run hot despite light pressure and clean bits, internal mechanical components have degraded beyond simple technique fixes.

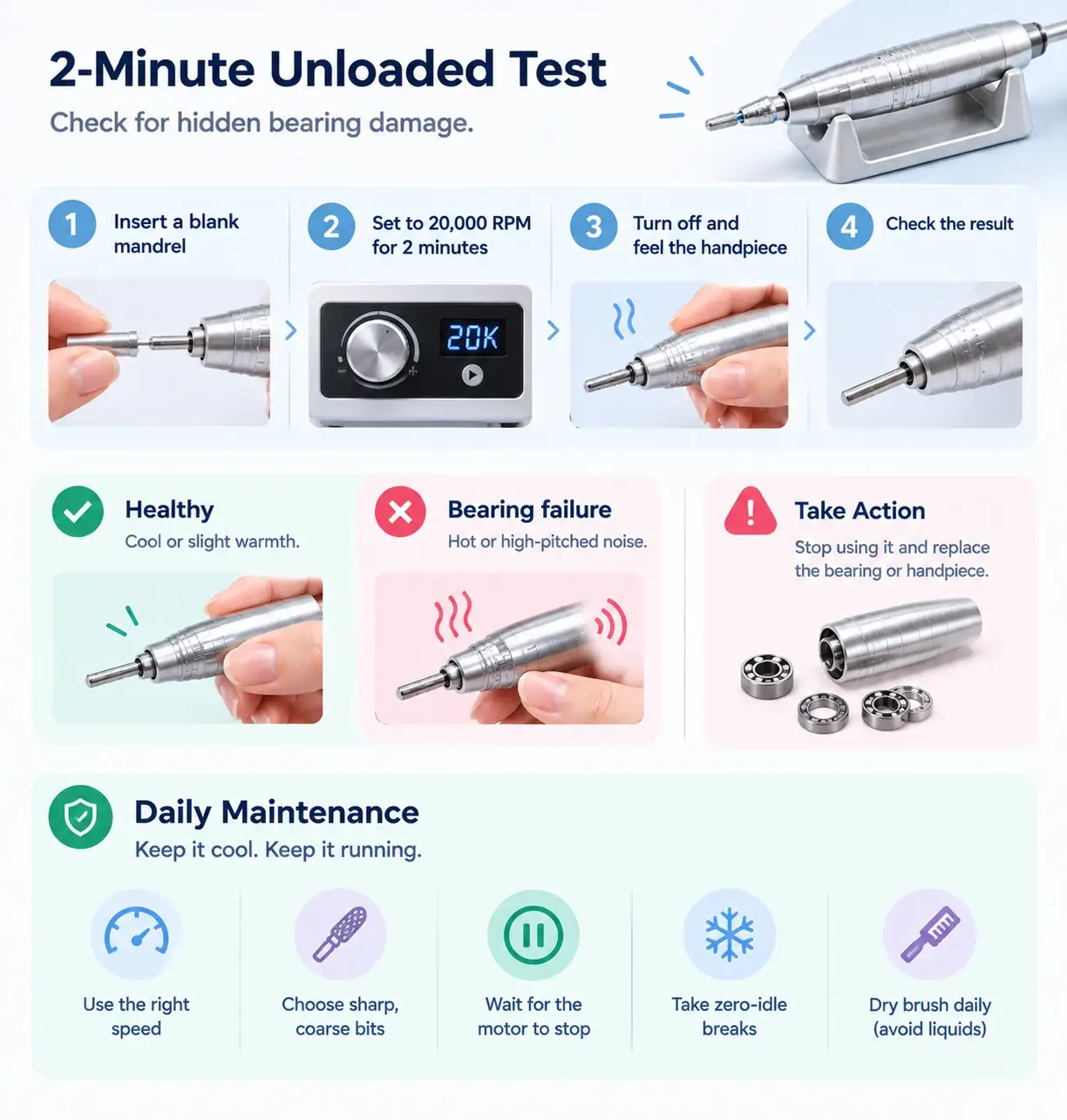

1. Conduct the 2-Minute Unloaded Bench Test:
   • Remove all bits, insert a balanced blank mandrel, and lock the chuck.
   • Set the speed dial to 20,000 RPM and let the handpiece spin completely unloaded on your desk for 2 minutes without touching it.
   • Switch the power off and immediately feel the front nose cone.
   • Healthy Status: The casing remains cool or shows only negligible, even warmth.
   • Internal Bearing Failure: The front barrel becomes hot to the touch or produces a high-pitched whistling noise, indicating dried, contaminated, or flat-spotted ball bearings.
2. Choose the Correct Resolution Path: Operating a tool with damaged bearings will quickly burn out the motor coils. Discontinue using the tool immediately and either replace the front precision bearing assembly or install a fresh handpiece assembly to maintain a smooth, vibration-free workstation.

1. Maintain adequate rotational speed rather than bogging down the motor with heavy pressure.
2. Use sharp, coarse carbide bits to clear debris efficiently and carry heat away from the handpiece.
3. Prevent unnecessary electrical and mechanical stress by waiting for the motor to stop before toggling rotation directions.
4. Integrate zero-idle micro-breaks during curing stages to allow continuous convective cooling.
5. Protect delicate ball bearings through daily dry brushing while keeping liquid disinfectants out of the chuck mechanism.
