Carving hard gold, titanium, and steel demands uncompromising torque that portable units lack. Heavy-duty benchtop jewelry micromotors deliver continuous high power and zero stalling under high resistance. Here is your definitive guide to selecting, maintaining, and sourcing high-torque systems for heavy metal carving.

I. Key Technical Specifications

Evaluating a heavy-duty jewelry micromotor requires looking past peak marketing numbers and examining continuous performance metrics under real working loads.

Specification Metric	Entry-Level / Portable Units	Heavy-Duty Benchtop Micromotors
Power Output	40W – 65W	150W – 240W+
Torque Capacity	2.2 – 3.5 N·cm	6.5 – 8.5+ N·cm
RPM Range	0 – 30,000 RPM	0 – 45,000 / 50,000 / 55,000 RPM
Low-Speed Cutting	Prone to stalling under 5,000 RPM	Stall-free operation as low as 500 RPM
Duty Cycle	Intermittent (Requires cooling pauses)	Continuous high-load production line operation

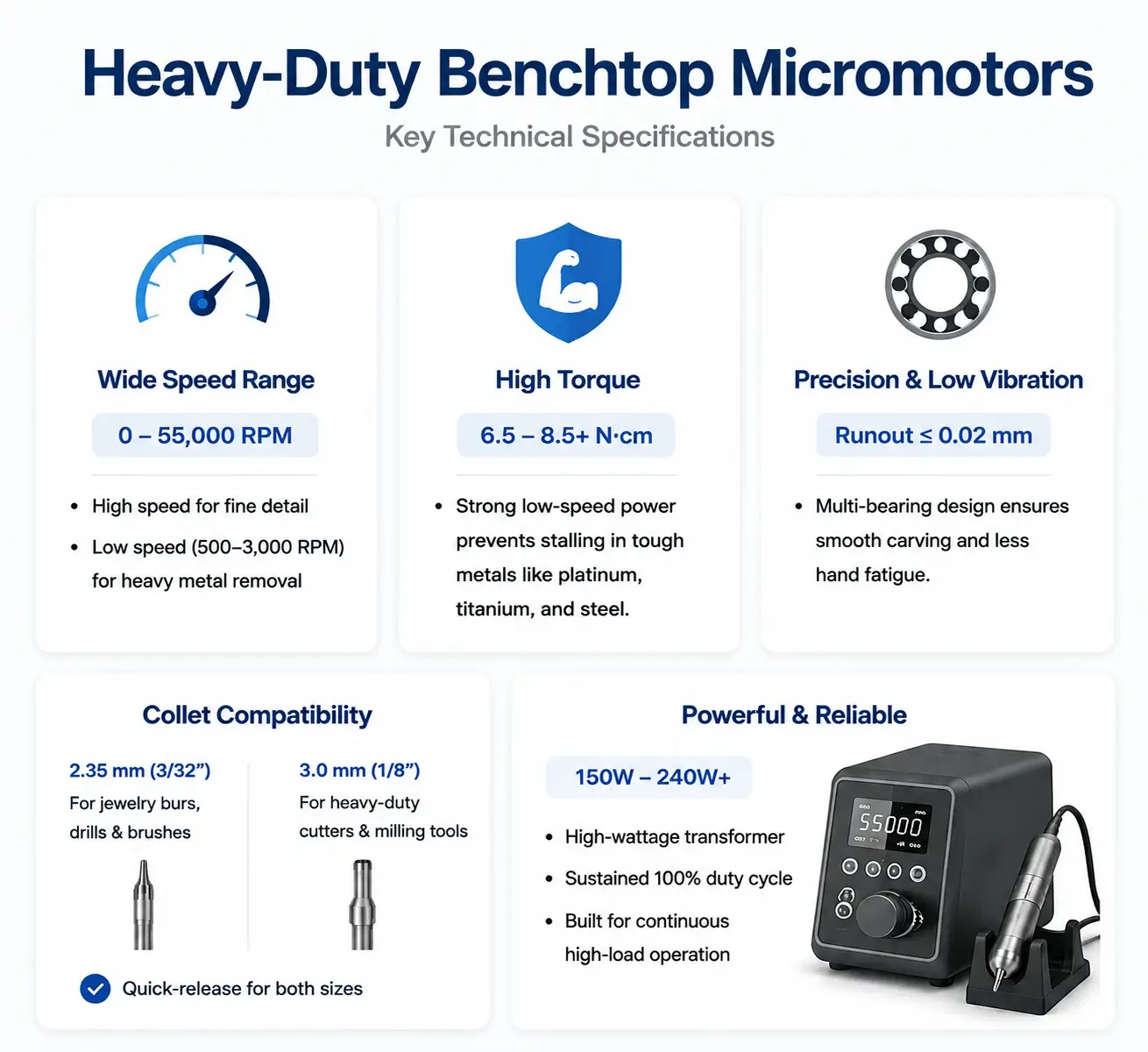

Technical breakdown of heavy-duty micromotor specs including speed range, torque ratings, and collet compatibility.

RPM Range and Speed Intervals

A professional benchtop system offers an expansive speed envelope, typically spanning 0 to 45,000, 50,000, or 55,000 RPM. Fine adjustment controls allow operators to set micro-incremental speeds. High speed is critical for fine-line diamond bur texturing, while low speed (500 to 3,000 RPM) is essential for heavy metal removal using larger carbide burs.

Torque Output (N·cm)

Torque measures the rotational force maintained by the handpiece under load. Measured in Newton-centimeters (N·cm), heavy-duty systems deliver 6.5 to 8.5 N·cm or higher. High low-speed torque prevents the bur from grabbing or stalling when excavating deep channels in tough alloys like platinum, titanium, or steel.

Handpiece Precision and Vibration Control

Carving intricate scrollwork or setting stones requires extreme concentricity. High-grade handpieces maintain a runout precision within 0.02 mm. Multi-bearing structural layouts absorb radial impacts, eliminating handpiece chatter that dulls carbide burs prematurely and causes hand fatigue.

Collet Compatibility

Industrial jewelry production relies on standard tool shanks:

2.35 mm (3/32"): The global standard for jewelry burs, drills, and rotary brushes.
3.0 mm (1/8"): Used for heavy-duty industrial burs, large carbide cutters, and specialized milling tools.

A versatile benchtop setup should offer quick-release chucking mechanisms for both sizes, either via interchangeable collets or dedicated quick-change handpieces.

Power Supply & Duty Cycle

The control box acts as the power center. A true heavy-duty bench unit utilizes high-wattage transformers (typically 150W to 240W+) capable of sustained 100% duty cycles

II. Heavy-Duty Structural & Engineering Features

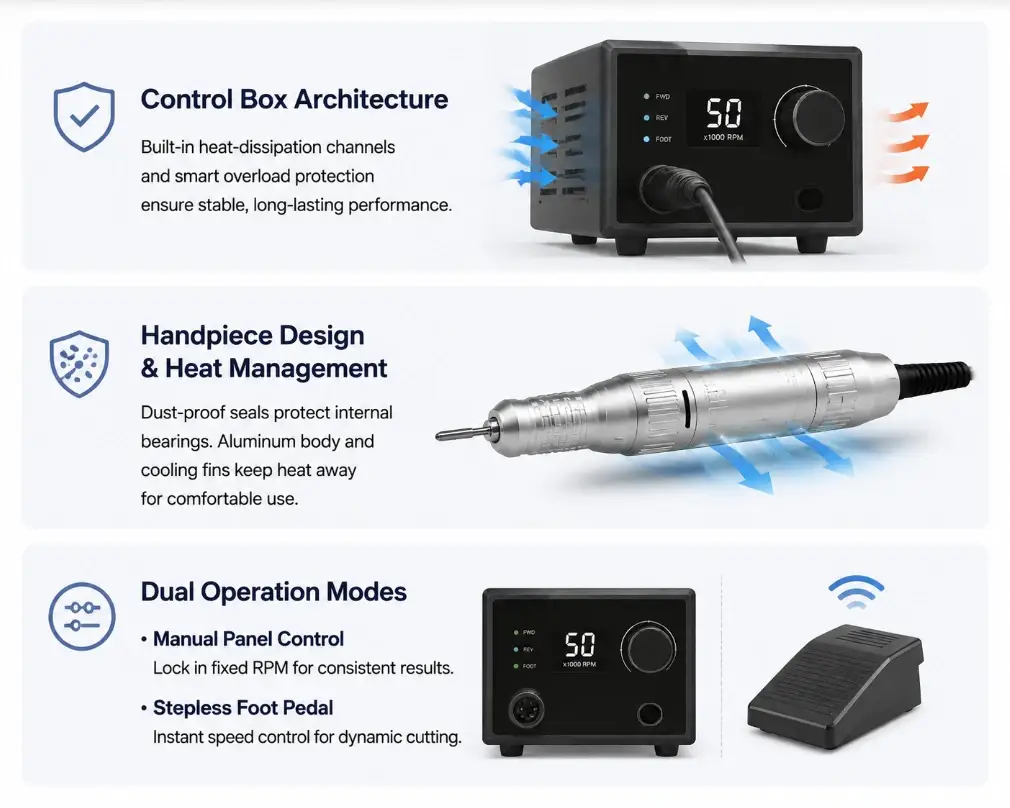

Infographic showing micromotor control box heat dissipation, dust-proof handpiece cooling, and foot pedal modes.

Control Box Architecture

Heavy-duty control consoles are built with heavy-gauge housings and internal heat-dissipation channels to draw heat away from core circuitry. Advanced microprocessors continuously monitor current draw. If a bur binds unexpectedly in a steel workpiece, the automatic overload protection instantly limits current to prevent motor burnout, resetting seamlessly once the obstruction clears.

Handpiece Design & Heat Management

Metal carving produces fine, abrasive conductive dust. Professional handpieces integrate labyrinth dust-proof seals to shield internal bearings. Aluminum alloy sleeves and internal cooling fins dissipate heat away from the grip area, keeping the handpiece comfortable to hold during extended carving sessions.

Dual Operation Modes

Versatility requires dual control options:

Manual Panel Control: Allows bench operators to lock in a fixed RPM for consistent surface texturing or background matting.
Stepless Variable Foot Pedal: Provides immediate speed modulation for dynamic cutting, allowing the engraver to ramp up power for deep cuts and back off instantly for delicate line work.

III. Metal Carving Application Scenarios

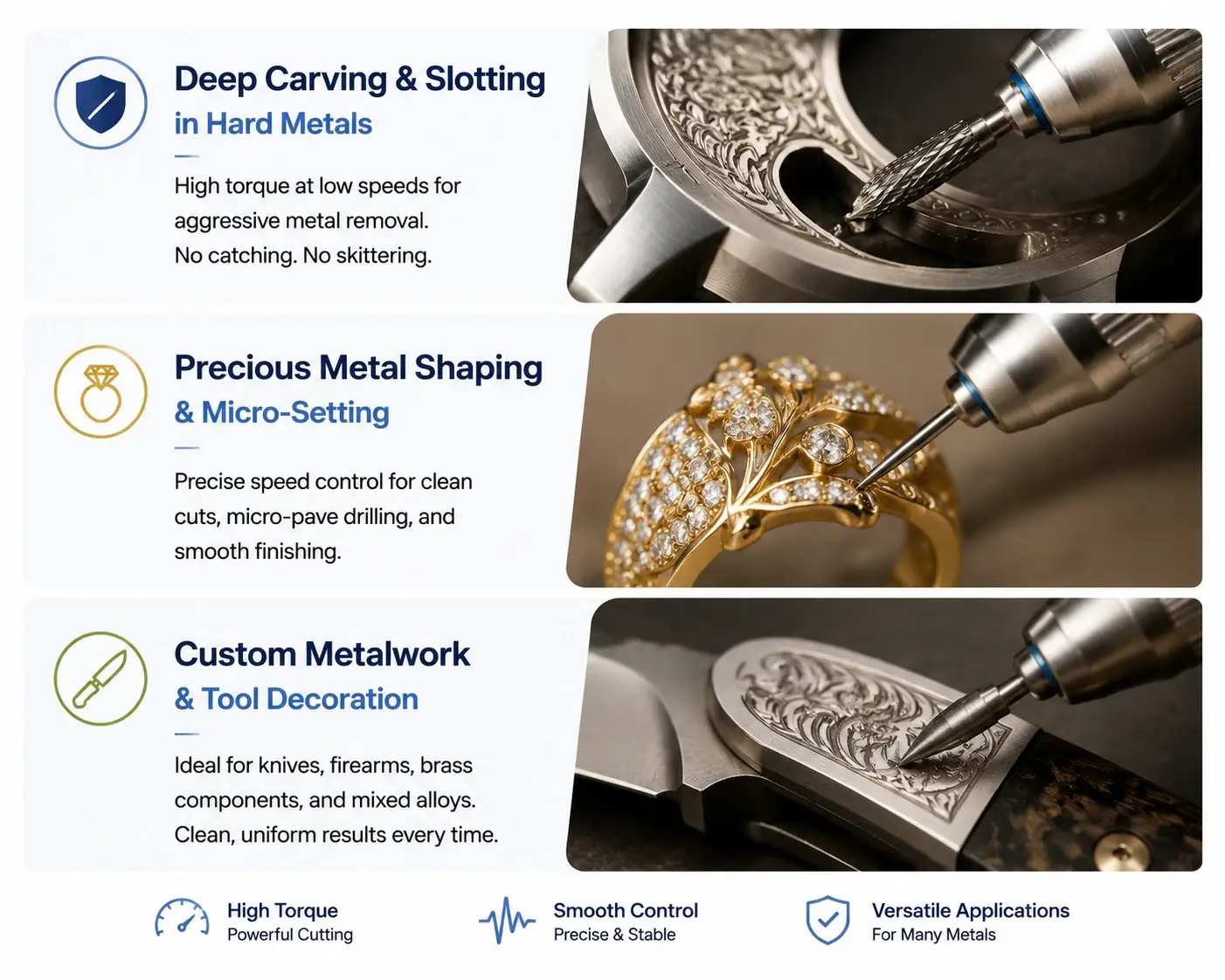

Three micromotor applications demonstrating hard metal carving, gemstone micro-setting, and custom metal engraving.

Deep Carving & Slotting in Hard Metals

Carving steel watch cases, titanium jewelry, or hard bronze sculptures demands aggressive metal removal. High-torque benchtop units allow engravers to use coarse carbide burs at low speeds to hog out material quickly without catching or skittering across the metal surface.

Precious Metal Shaping & Micro-Setting

Working high-karat gold, platinum, or sterling silver requires precise speed control. The combination of high RPM capability and smooth torque delivery allows goldsmiths to execute clean bright-cuts, drill micro-pave holes with zero bit drift, and clean up casting sprues smoothly.

Custom Metalwork & Tool Decoration

Beyond traditional jewelry, heavy-duty micromotors are widely used for decorating knife bolsters, engraving custom firearms, and texturing handcrafted brass components. The steady power output handles varying metal densities smoothly, ensuring clean, uniform cuts across mixed alloys.

V. Recommended Heavy-Duty Micromotor Solution

For workshops and manufacturing facilities seeking maximum torque output, continuous reliability, and modern benchtop ergonomics, the PRIME SENSE A9 Brushless System serves as a benchmark high-performance solution.
PRIME SENSE A9 brushless micromotor drill system featuring a digital control console, handpiece, and foot pedal.

PRIME SENSE A9 brushless micromotor drill system featuring a digital control console, handpiece, and foot pedal.

Technical Capabilities & High-Torque Performance

Driven by a heavy-duty 240W power control unit, the PRIME SENSE A9 generates 8.5 N·cm of maximum torque. Its low-speed electronic stabilization allows the unit to hold full rotational force at speeds down to 500 RPM, extending up to a high-speed ceiling of 55,000 RPM. This wide, steady power band prevents tool stalling when executing deep relief cuts in tough alloys or removing dense casting sprues.

Industrial Brushless Architecture

By eliminating wear-prone carbon brushes, the system reduces internal mechanical friction and operational heat build-up. The handpiece features a completely enclosed, dust-shielded housing that prevents metallic particles and abrasive powders from entering the bearing assembly, ensuring smooth operation in harsh workshop environments.

Control Ergonomics & System Safety

Wireless Speed Modulation: Equipped with a zero-latency Bluetooth foot pedal, removing under-bench cable clutter and giving operators fluid speed control during complex carving passes.
Smart Overload Protection: An integrated microprocessor monitors real-time current draw. If a bur binds unexpectedly, the power box instantly cuts drive current to protect the handpiece motor, displaying clear fault codes for rapid troubleshooting.

Recommended Operational Use Cases

Heavy sprue cutting and gate dressing on precious metal castings.
Deep relief milling, slotting, and texturing on titanium, stainless steel, and hard bronze.
Continuous, multi-shift production environments requiring zero maintenance downtime.

VI. Maintenance & Serviceability

Proper maintenance protocols protect your investment and prevent premature handpiece wear.

Routine Cleaning & Dust Management

Daily Clean-Down: At the end of each shift, wipe down the handpiece sleeve with a dry microfiber cloth. Use low-pressure compressed air (under 30 PSI) directed away from the collet opening to clear accumulated metal dust.
Collet Care: Remove the collet weekly, clean internal threads with a soft brass brush, and remove packed metal debris to maintain maximum gripping force. Never oil the internal collet assembly, as lubricants attract abrasive dust.

Wearable Parts & Inspection Intervals

Brushless Systems: Inspect handpiece cords annually for flex fatigue. Check spindle runout every 6 months using a dial indicator.
Brushed Systems: Check carbon brush length every 300 operating hours; replace brushes before they wear down past the indicator mark to prevent armature damage.
Bearing Replacement: If the handpiece develops a high-pitched whine, runs unusually hot, or exhibits visible radial play, replace the sealed bearing set immediately to prevent spindle damage.

Troubleshooting Common Benchtop Issues

Symptom	Probable Cause	Recommended Corrective Action
Overload indicator trips	Excessive feed pressure / bound bur	Ease feed pressure; reset power unit.
Bur slipping in chuck	Debris in collet / worn collet spring	Clean collet chuck; replace collet if worn.
Handpiece running hot	Worn bearings / blocked air vents	Clear debris vents; replace handpiece bearings.
Intermittent power loss	Damaged handpiece cord	Inspect strain relief; replace handpiece cable.

Conclusion & Procurement Support

Investing in a high-quality, heavy-duty benchtop jewelry micromotor is essential for any workshop handling serious metal carving. Matching high wattage and high torque output with precision handpieces allows artisans and production technicians to work faster, reduce tool chatter, and achieve exceptional surface finishes on tough alloys.
As a specialized jewelry micromotors manufacturer and supplier, RHJC delivers industrial-grade benchtop systems, precision handpieces, and complete replacement parts for workshops and B2B distributors globally.
Contact our technical sales team today to request comprehensive product catalogs, OEM/wholesale pricing, or direct technical support for your equipment upgrades.
