How to Reduce Dental Micromotor Handpiece Vibration

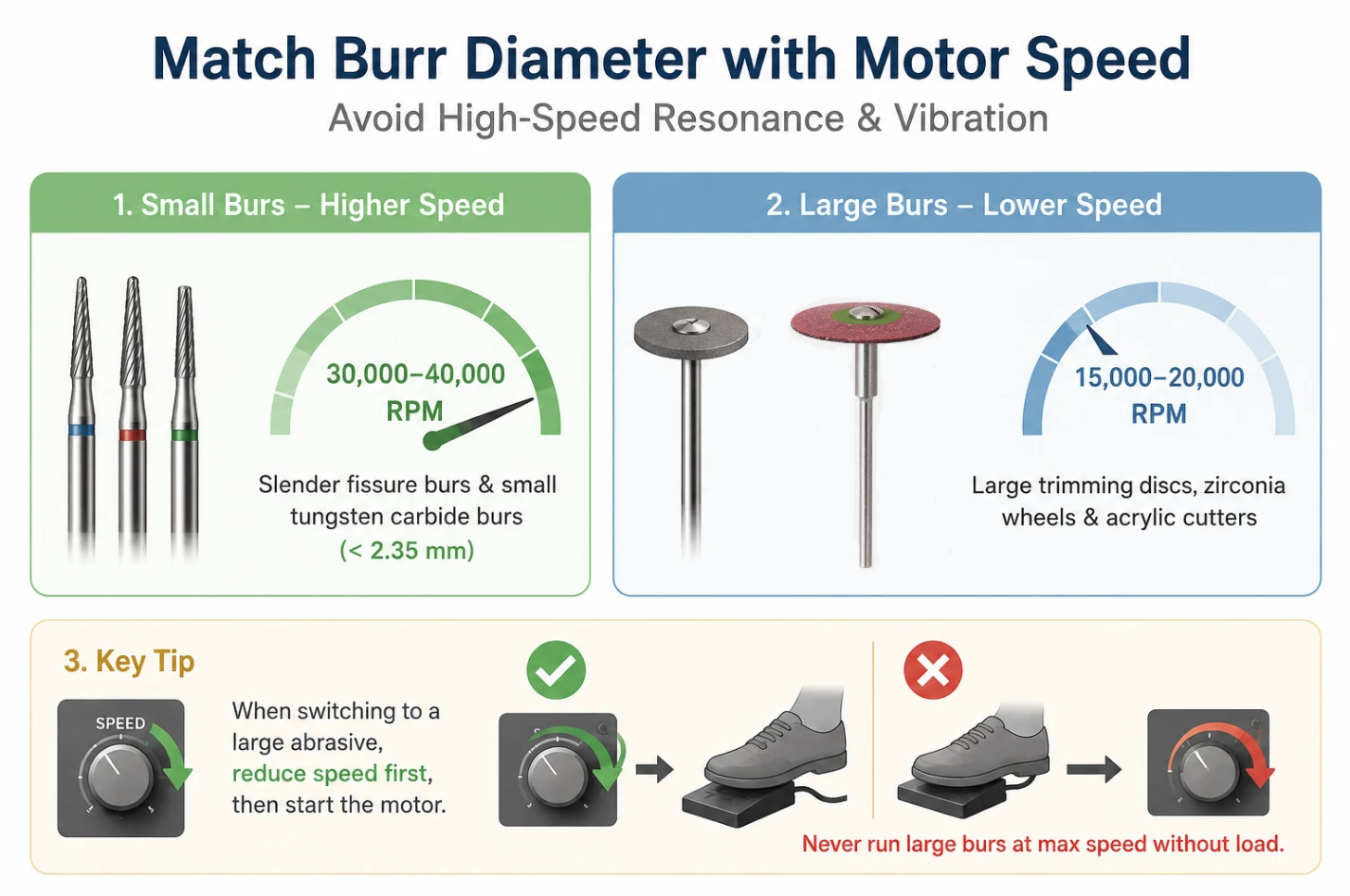

I.Match Burr Diameter with Motor Speed to Avoid High-Speed Resonance


Operating every rotary bur at maximum dial speed is a primary cause of severe handpiece chatter. A balanced tool setup requires adjusting operating velocity to account for rotary tool physics.

1. The Principle of Inverse Proportion: As tool head diameter increases, peripheral mass amplifies eccentric centrifugal force exponentially. A tiny flaw in mass balance that remains imperceptible on a fine needle bur generates heavy resonant shudder on a broad wheel.
2. Speed Reduction Guidelines:
   1. Slender fissure burs & small tungsten carbide burs (under 2.35 mm): Run smoothly at 30,000 to 40,000 RPM for bulk reduction and crisp contouring.
   2. Large plaster trimming discs, coarse zirconia grinding wheels, & acrylic cutters: Throttle down to 15,000 to 20,000 RPM. This keeps rotational momentum within stable kinetic limits.
3. Eliminating Idling Whine and Jitter: When switching from an operative bur to a broad laboratory abrasive, manually roll back the speed dial on the benchtop control box before depressing the foot rheostat. Never spin large-diameter rotary tools at maximum velocity without load.

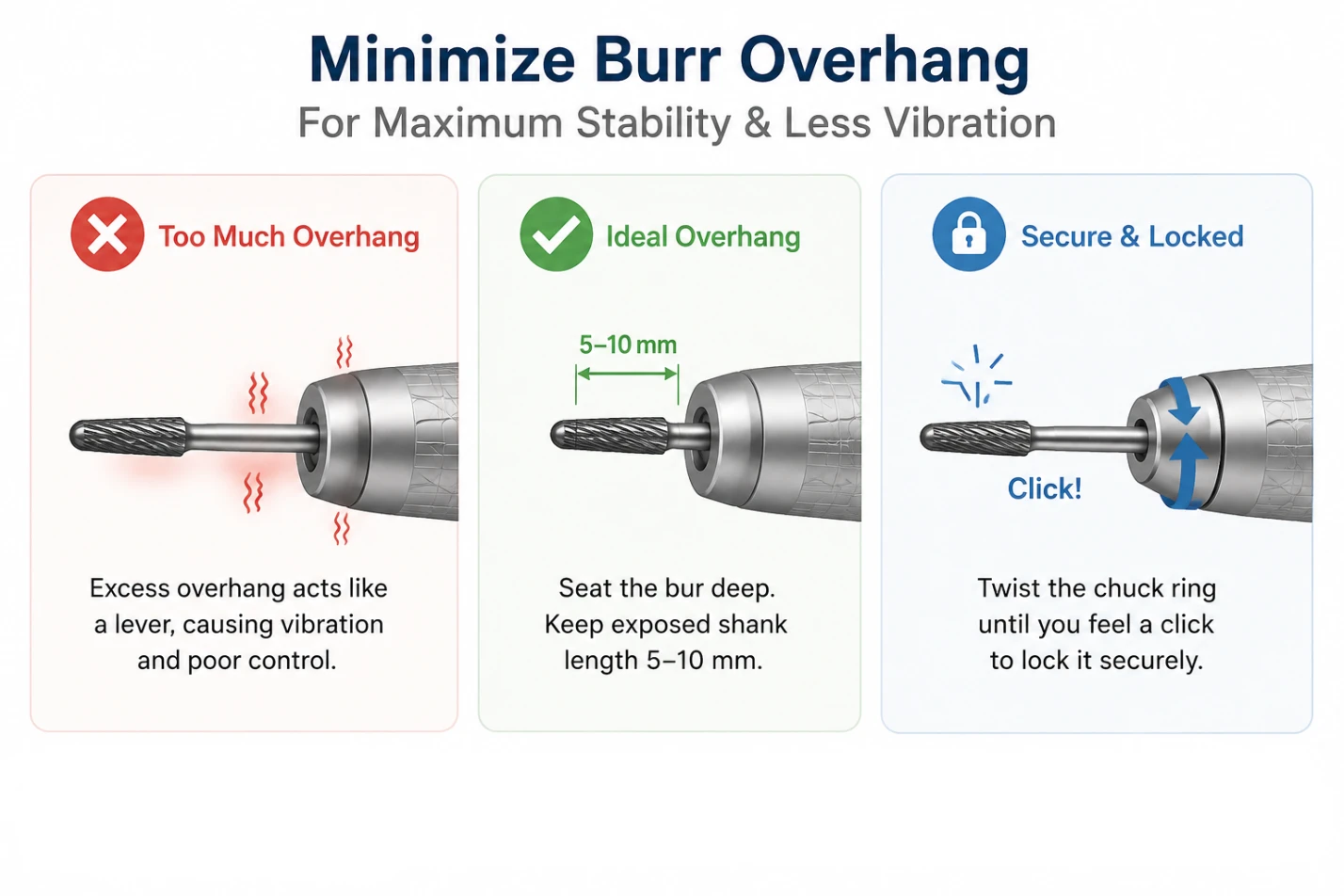

II.Minimize Burr Overhang to Eliminate Centrifugal Leverage Effects


How a bur sits inside the chuck assembly directly impacts rotational stability. Extending a bur too far creates an unguided lever arm that magnifies tool deflection.

1. The Cantilever Amplification Effect: Pulling a bur outward to reach interproximal areas or improve line-of-sight turns the exposed shank into a vibrating cantilever. At 35,000 RPM, this overhang whips erratically off-axis, transmitting high-frequency vibrations into your fingers.
2. Standard Installation Depth: Seat the bur shank deep into the spindle chamber. As a rule of thumb, keep exposed shank length between 5 mm and 10 mm, exposing only the active abrasive profile.
3. Confirming the Lock: Twist the handpiece chuck ring until a tactile, distinct click confirms engagement. This snap verifies that the internal cam has driven the collet fingers into full mechanical engagement around the steel shank.

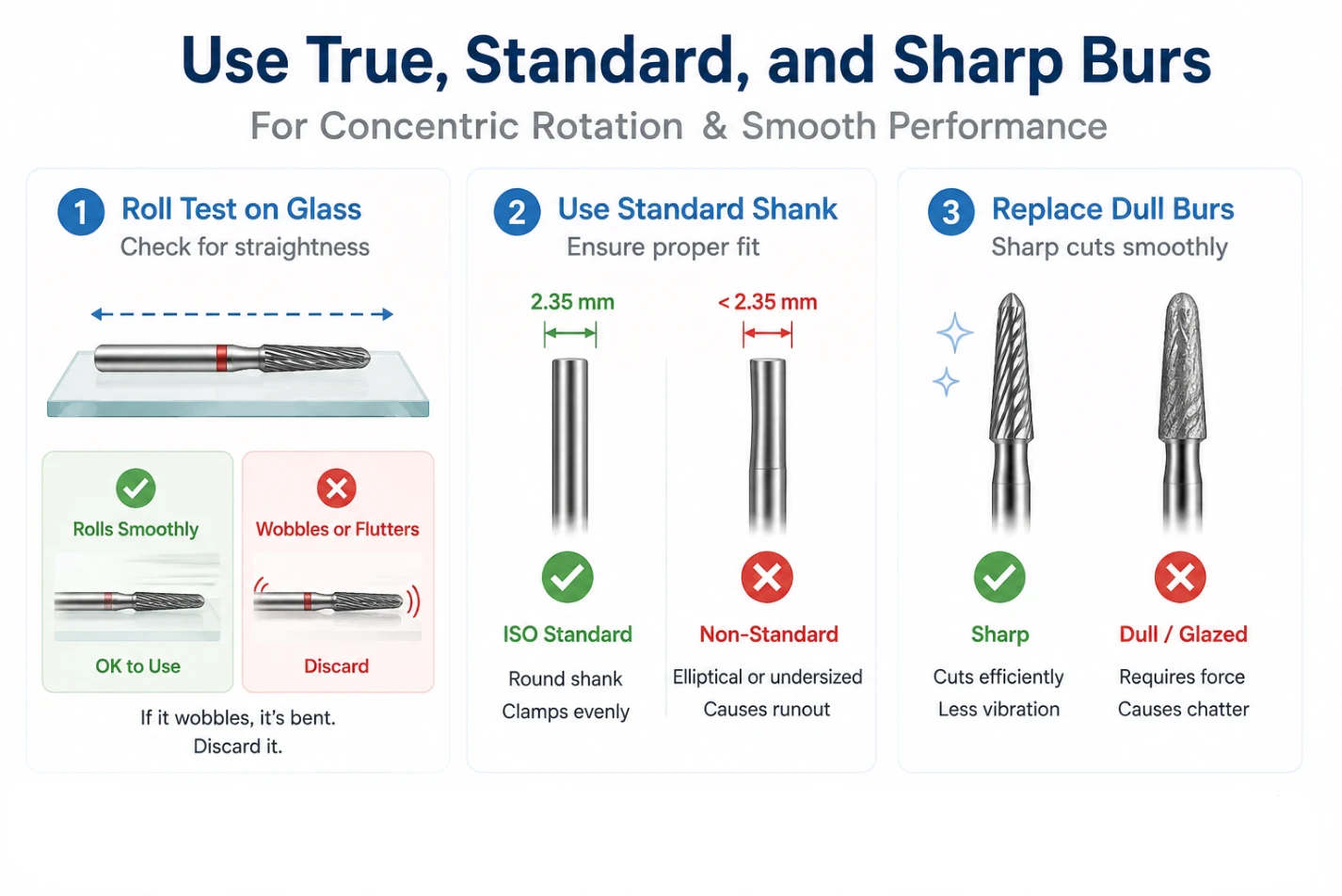

III.Discard Slightly Bent or Non-Standard Burs to Ensure Concentricity


A dental lab handpiece can achieve concentric rotation only if the rotary tool clamped inside it is structurally true. Damaged or out-of-spec accessories degrade overall performance.

1. The Glass Plate Rolling Test: Dropping a bur on a tiled floor or prying out an acrylic framework bends the neck fractionally. Because runout under 0.05 mm is hard to spot by eye, roll the bur across a flat glass slab. If the cutting head exhibits light flutter, wobble, or uneven contact, discard it immediately.
2. Strictly Select Burs with Standard Shank Tolerances: Use rotary accessories manufactured to precise ISO standards (typically 2.35 mm nominal shank diameter). Generic, low-grade burs often have elliptical or undersized shanks. This unevenness prevents the three-jaw chuck from clamping uniformly, inducing immediate radial runout.
3. Replace Dull Cutting Tips: Dull tungsten flutes and glazed diamond burs refuse to shear material cleanly. Technicians instinctively push harder to compensate, sending violent chatter straight back into the handpiece spindle.

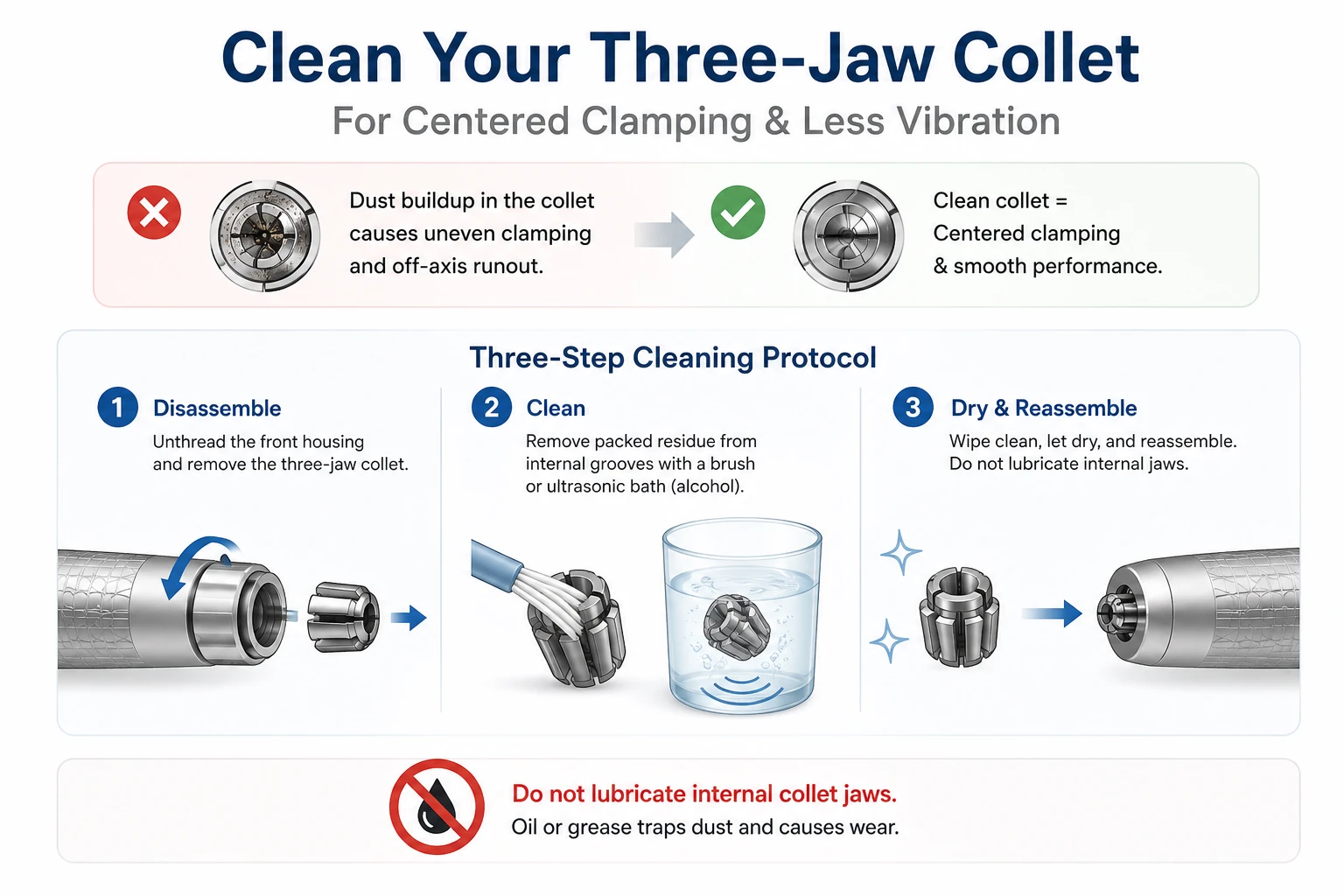

IV.Regularly Clean Dust from the Three-Jaw Collet to Ensure Centered Clamping


Fine particulates generated from shaping stone casts, sintered zirconia, and chrome-cobalt frameworks penetrate deep into the handpiece chuck mechanism over time.

1. Impact of Dust Buildup on Concentricity: Airborne debris migrates into the slots of the collet chuck. Once compressed by clamping pressure, these packed cakes of grit prevent the three collet segments from collapsing evenly toward the centerline, forcing the bur off-axis.
2. Standard Three-Step Cleaning Protocol:
   1. Unthread the front housing using the factory maintenance wrench and withdraw the three-jaw collet mechanism.
   2. Clear packed residue from internal clamping grooves using a stiff nylon brush or an ultrasonic bath filled with anhydrous alcohol.
   3. Wipe the assembly clean, let it dry, and reassemble. Never lubricate internal collet jaws with standard mineral oil or bearing grease; wet film traps airborne dust and transforms into an abrasive slurry that accelerates chuck wear.

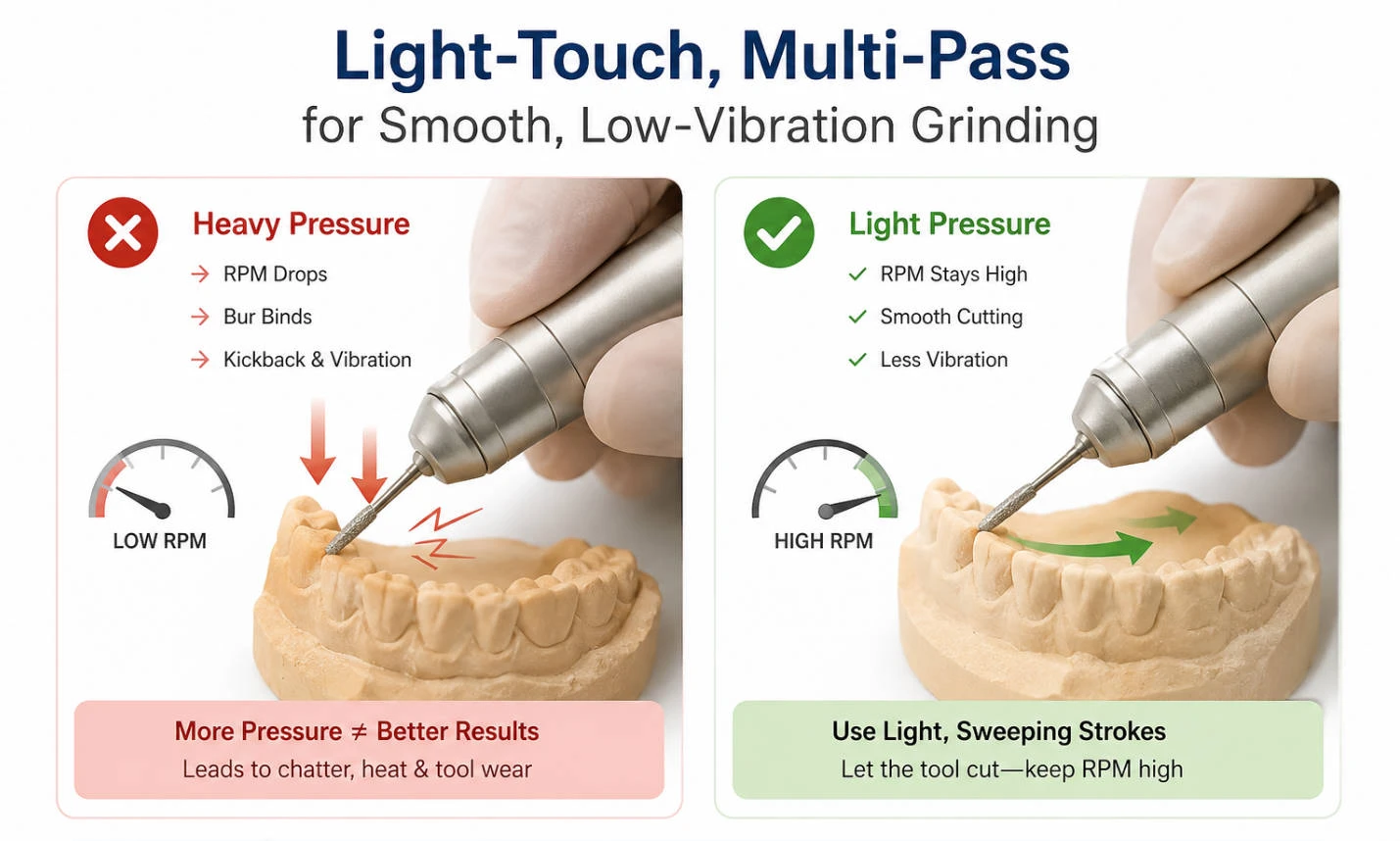

V.Adopt a "Light-Touch, Multi-Pass" Grinding Technique


Aggressive physical pressure during trimming disrupts motor torque curves and destabilizes rotary cutting tools.

1. Heavy Pressure Causes Stalling and Kickback: Forcing a bur into dense substrates drops motor RPM sharply. When the motor bogs down, the bur teeth catch and climb on the material edge, inducing harsh rebound, chatter, and micro-stalls that stress the handpiece drivetrain.
2. High-Speed Cutting Logic: Dental laboratory electric micromotors rely on high peripheral surface speed and sharp tool geometry—not physical force. Guide the spinning head across the surface using light, sweeping strokes. Letting the tool cut unhindered maintains stable RPM, eliminates kickback, and keeps the handpiece running smoothly in hand.

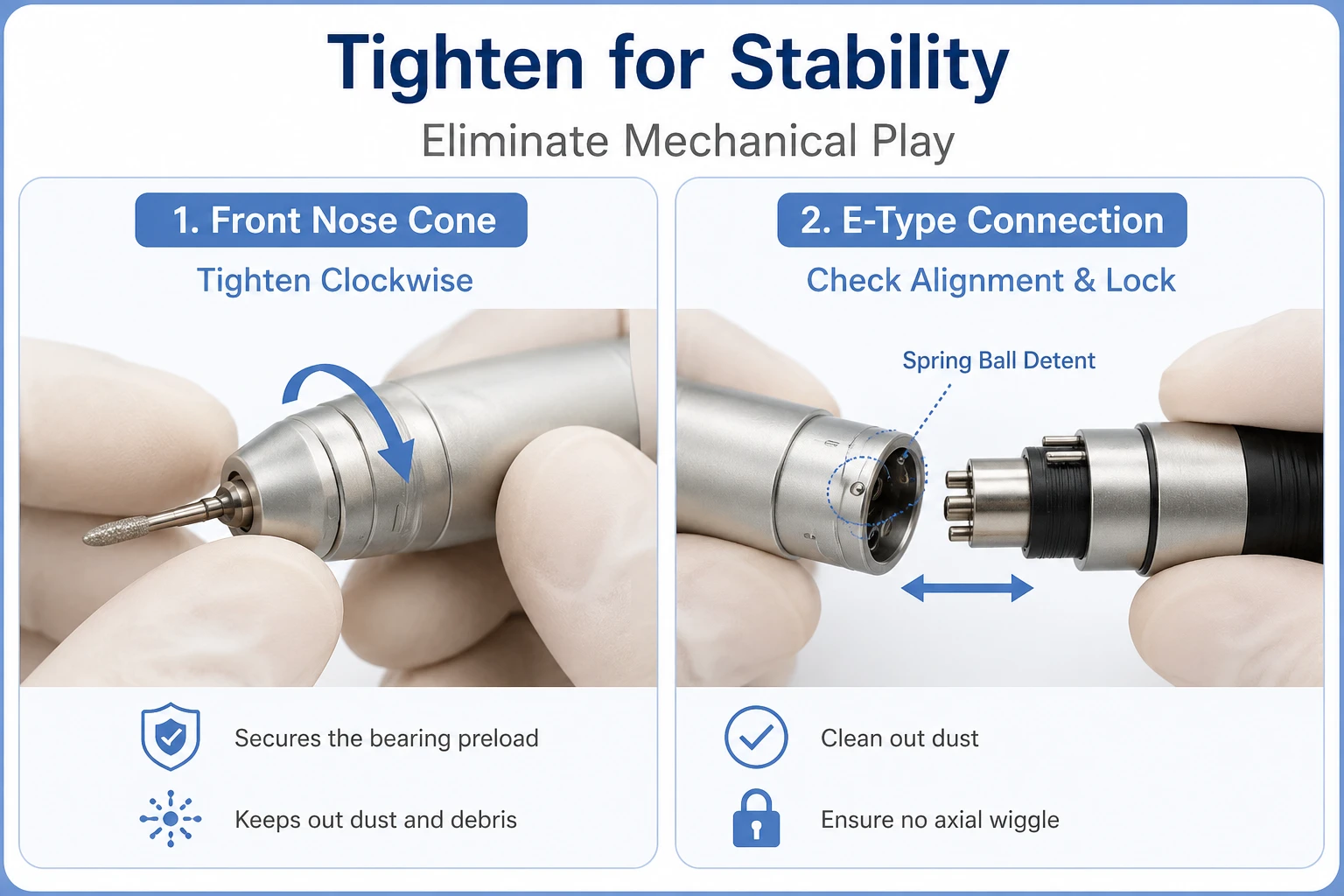

VI.Tighten the Front Nose Cone and Locking Ring to Eliminate Mechanical Play


Hours of continuous micro-vibration can gradually loosen mechanical joints along the handpiece shell, creating structural play.

1. Check the Front Dust-Proof Cone: The tapered aluminum nose cone acts as both a debris shield and a structural retainer that sets preload against the forward bearing group. If operational vibration backs this thread off even a fraction of a turn, the bearings lose axial tension, causing visible play. Firmly hand-tighten the cone clockwise to seat the bearing stack securely.
2. E-Type Connection Alignment: On modular systems featuring an ISO E-type motor and separate straight nose cone, check the spring-loaded ball detent. Clean out trapped dust, verify the locating pin slots cleanly into place, and make sure no axial wiggle remains between motor driver and handpiece nose.

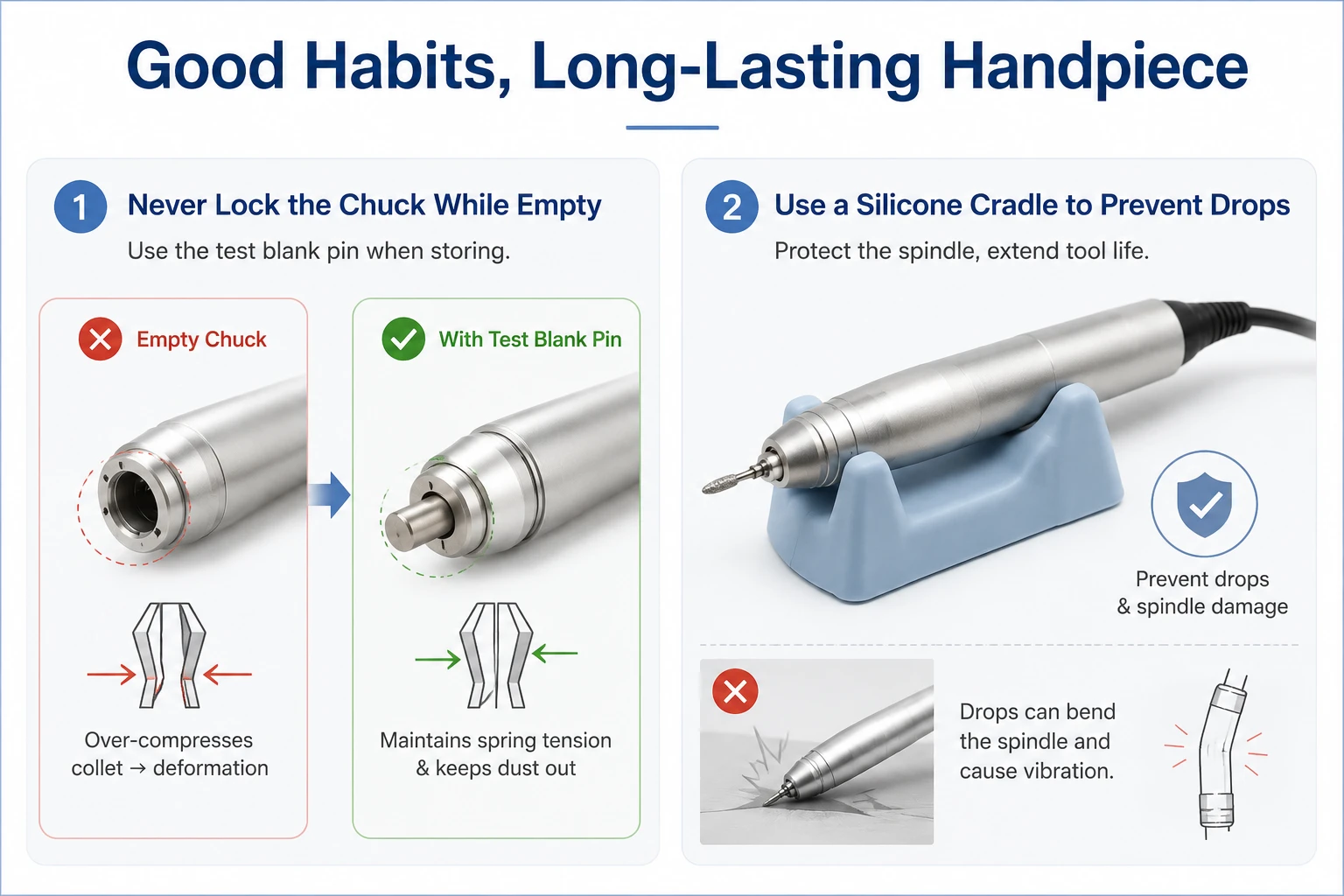

VII.Cultivate Good Habits: Proper Storage and Drop Prevention


Structural integrity relies heavily on how a tool is treated when it is not actively running on the bench.

1. Never Lock the Chuck While Empty: Securing the handpiece chuck without a shank inside causes the spring-steel collet leaves to over-compress and deform permanently. When storing your handpiece, always clamp down on the manufacturer's smooth Test Blank pin. This preserves correct spring tension and keeps dust out of the spindle tube.
2. Use a Silicone Cradle to Prevent Drops: Accidental falls from bench height remain the leading cause of bent internal drive spindles. A minor spindle deflection exceeding 0.02 mm produces permanent, severe vibration that routine bench maintenance cannot fix. Keep a molded silicone handpiece rest within arm's reach and park the tool securely between trimming stages.

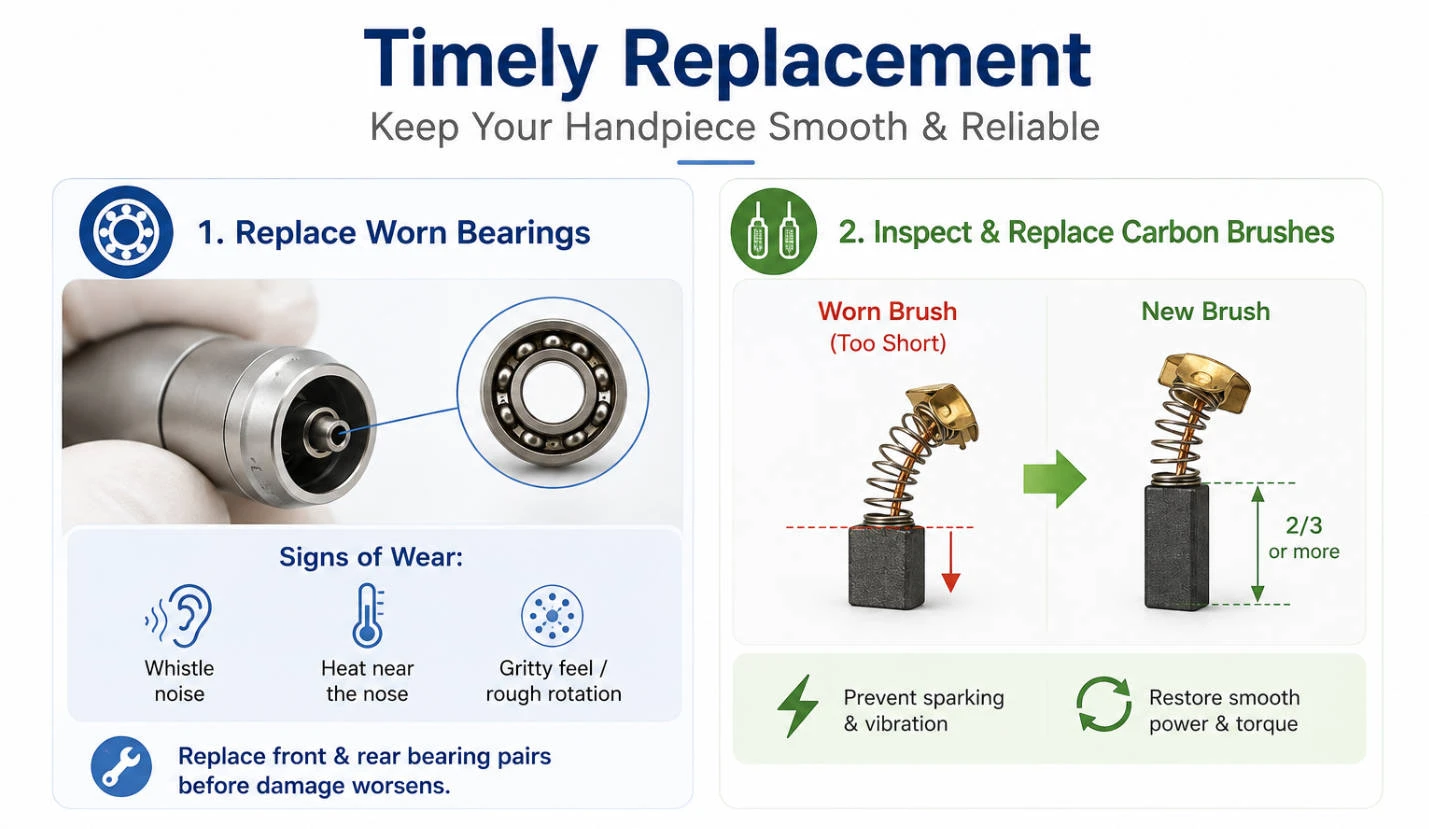

VIII.Timely Replacement of Worn Bearings and Carbon Brushes


When vibration persists despite correct operation, balanced burs, and a clean chuck, internal wear parts require inspection.

1. Bearing Wear Diagnostics: High-speed micro-bearings are consumable components. If an unloaded handpiece produces a dry, metallic whistle, generates noticeable heat near the nose within two minutes, or reveals gritty resistance when rotated by hand, the miniature ball bearings have suffered raceway spalling. Replace both front and rear bearing pairs promptly before an inner race seizes and scores the spindle.
2. Brushed Motor Carbon Brush Inspection: In traditional brushed units, carbon brushes that wear down past two-thirds of their original length lose spring tension. This causes the brushes to bounce, spark, and deliver erratic electrical pulses to the commutator, inducing an uneven motor shudder under load. Installing a fresh pair of carbon brushes restores balanced current flow and smooth rotary torque.
