Prevent Zirconia Chipping with Dental Micromotors

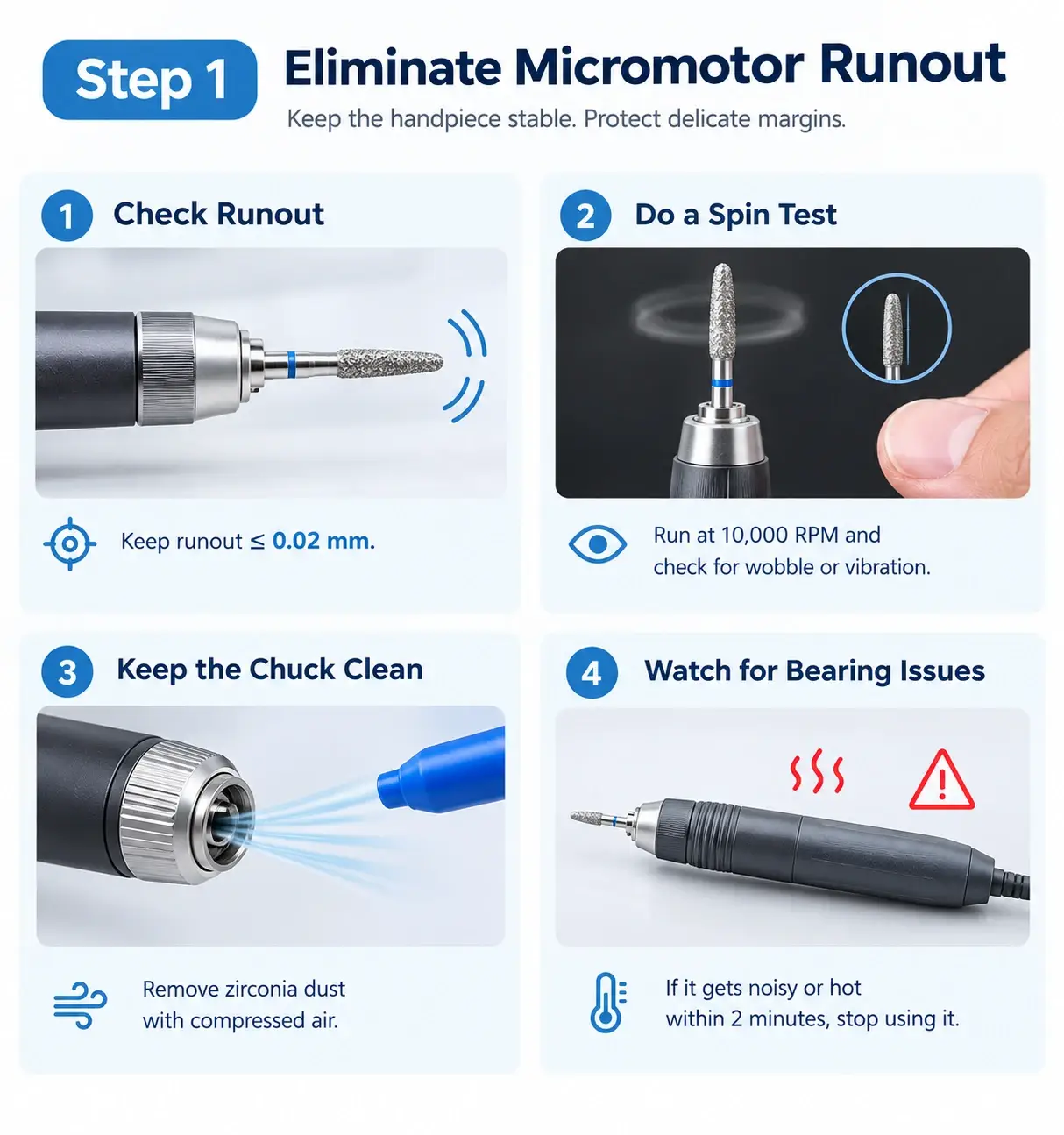

Step 1: Eliminate Micromotor Runout


Radial runout is the hidden killer of fragile ceramic margins. If your handpiece shaft wobbles even slightly, the bur stops slicing smoothly and instead behaves like a high-frequency jackhammer on razor-thin edges.

1. Concentricity Benchmark: Your handpiece radial runout must stay within ≤ 0.02 mm. Anything above this threshold creates mechanical flutter that shatters 0.2–0.3 mm knife-edge margins on contact.
2. The 10-Second Spin Test: Before touching any workpiece, insert a straight test bur and spin the motor at 10,000 RPM. Eyeball the tip against a dark background or gently place a thumbnail along the spinning shank. If you feel buzzing or see a faint blur of eccentric wobble, set the handpiece aside.
3. Chuck Cleanliness: Highly abrasive zirconia dust easily settles inside the collet slits. Clear the chuck with compressed air before seating burs; clamped grit tilts burs off-center and induces immediate runout.
4. Bearing Warning: If a handpiece emits a raspy grinding noise or the nose cone feels hot within two minutes of operation, the bearings have failed. Continuing to work with worn bearings guarantees edge chipping.

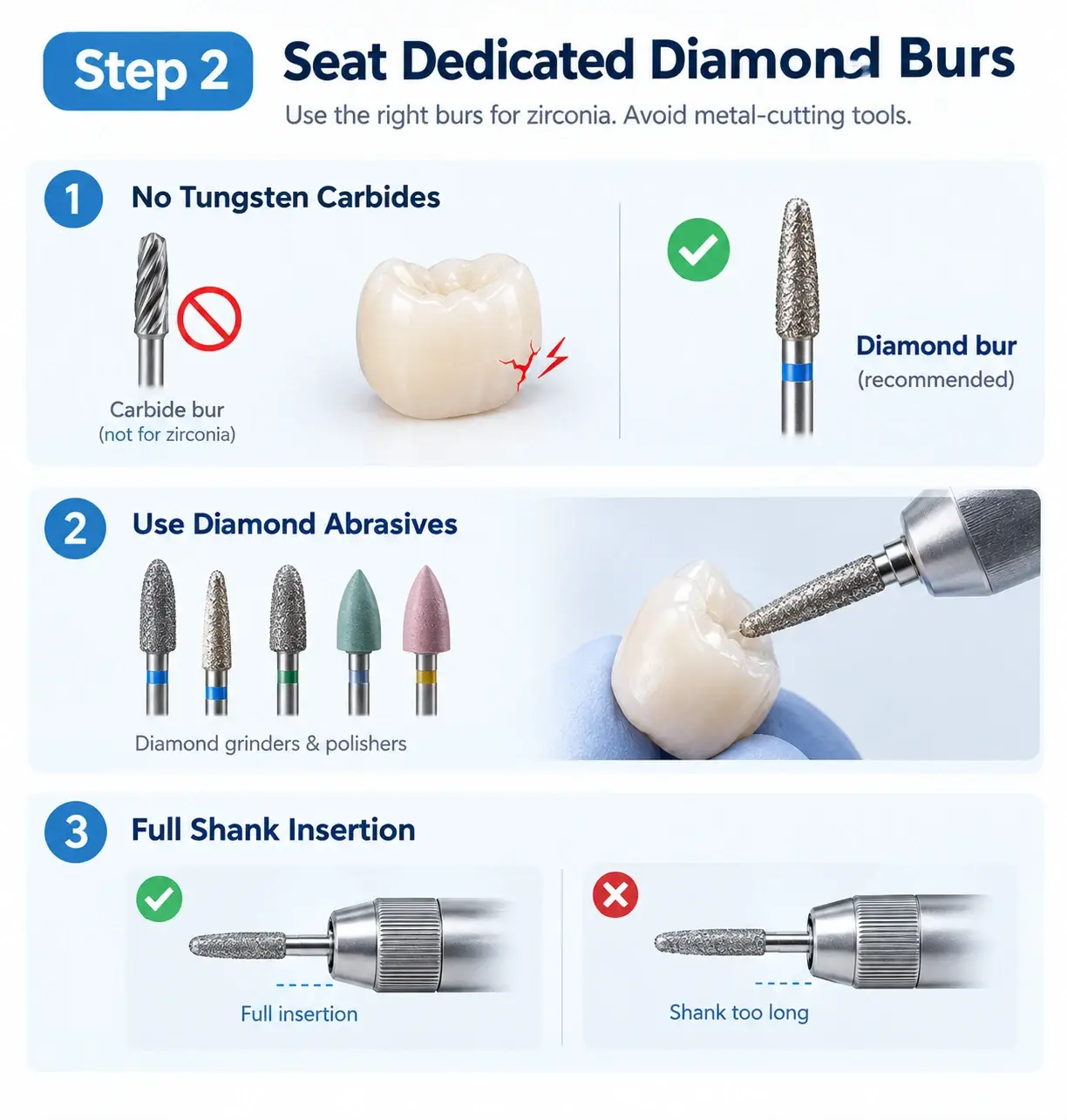

Step 2: Seat Dedicated Diamond Burs


Zirconia changes completely once fully sintered. Approaching it with metal-cutting rotary tools will destroy your margin line within seconds.

1. No Tungsten Carbides: Never touch fully sintered zirconia with carbide burs. Their aggressive, sharp flutes catch on the hard crystal matrix, generating shockwaves that initiate deep micro-fractures.
2. Resin- & Ceramic-Bonded Abrasives: Use dedicated diamond grinders and diamond-impregnated polishers. Ceramic- and polyurethane-bonded diamond instruments wear evenly, expose fresh diamond grit continuously, and disperse localized friction.
3. Full Shank Insertion: Seat the bur shank completely to the depth line of the collet chuck. Leaving shanks extended turns the exposed steel into a flexible lever arm, multiplying vibration and causing bur chatter right at the restoration perimeter.

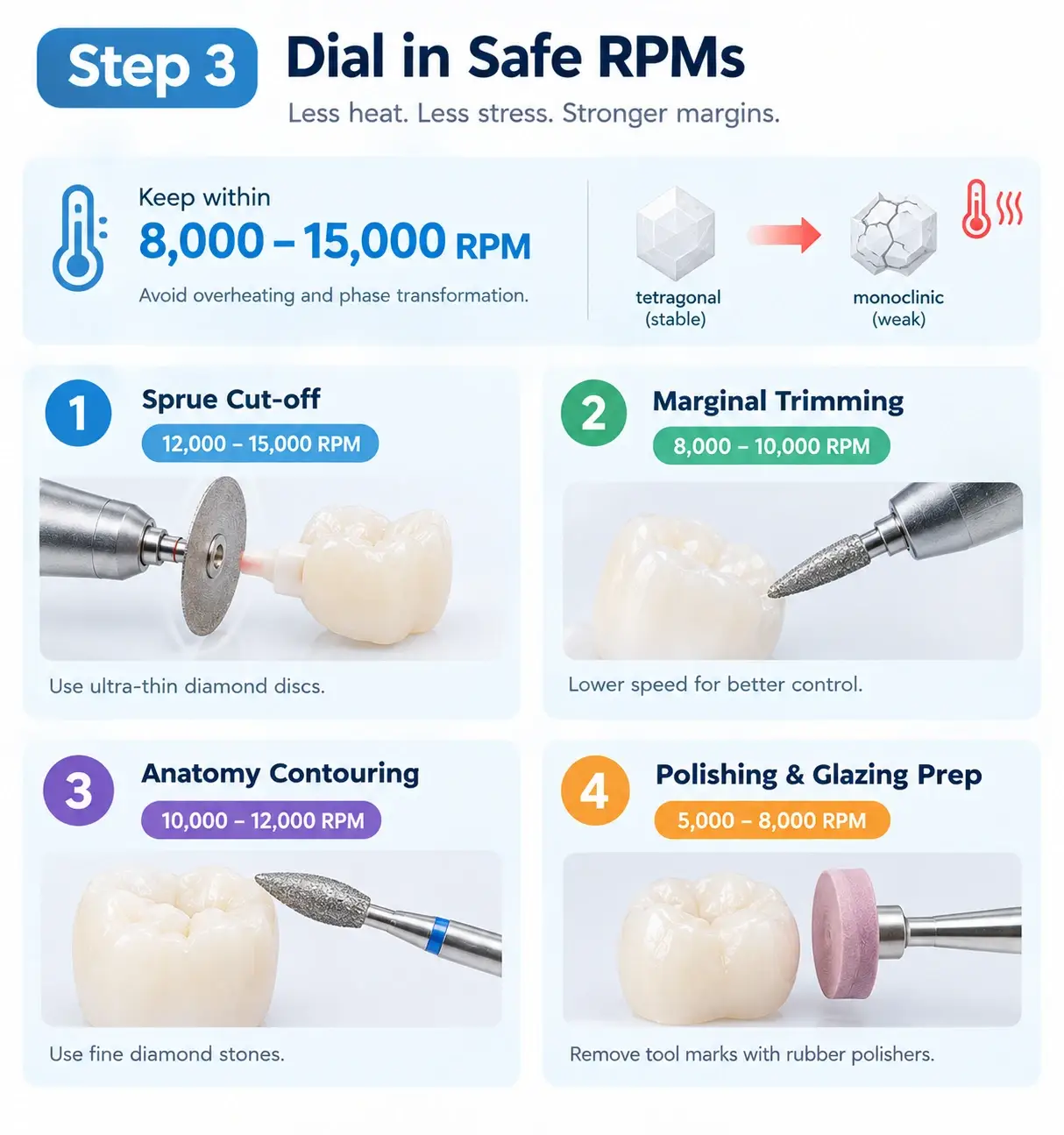

Step 3: Dial in Safe RPMs


Running a lab handpiece at maximum speed does not make trimming faster; it only generates destructive friction heat. Excessive heat triggers a local phase transformation (t → m), where the tetragonal crystal structure shifts to monoclinic. This phase shift causes localized volumetric expansion, micro-cracking, and early edge breakdown.
Keep your electric handpiece within the 8,000 to 15,000 RPM thermal safety window across all stages:

Sprue Cut-off (12,000–15,000 RPM)

Marginal Trimming (8,000–10,000 RPM)

Anatomy Contouring (10,000–12,000 RPM)

Polishing & Glazing Prep (5,000–8,000 RPM)

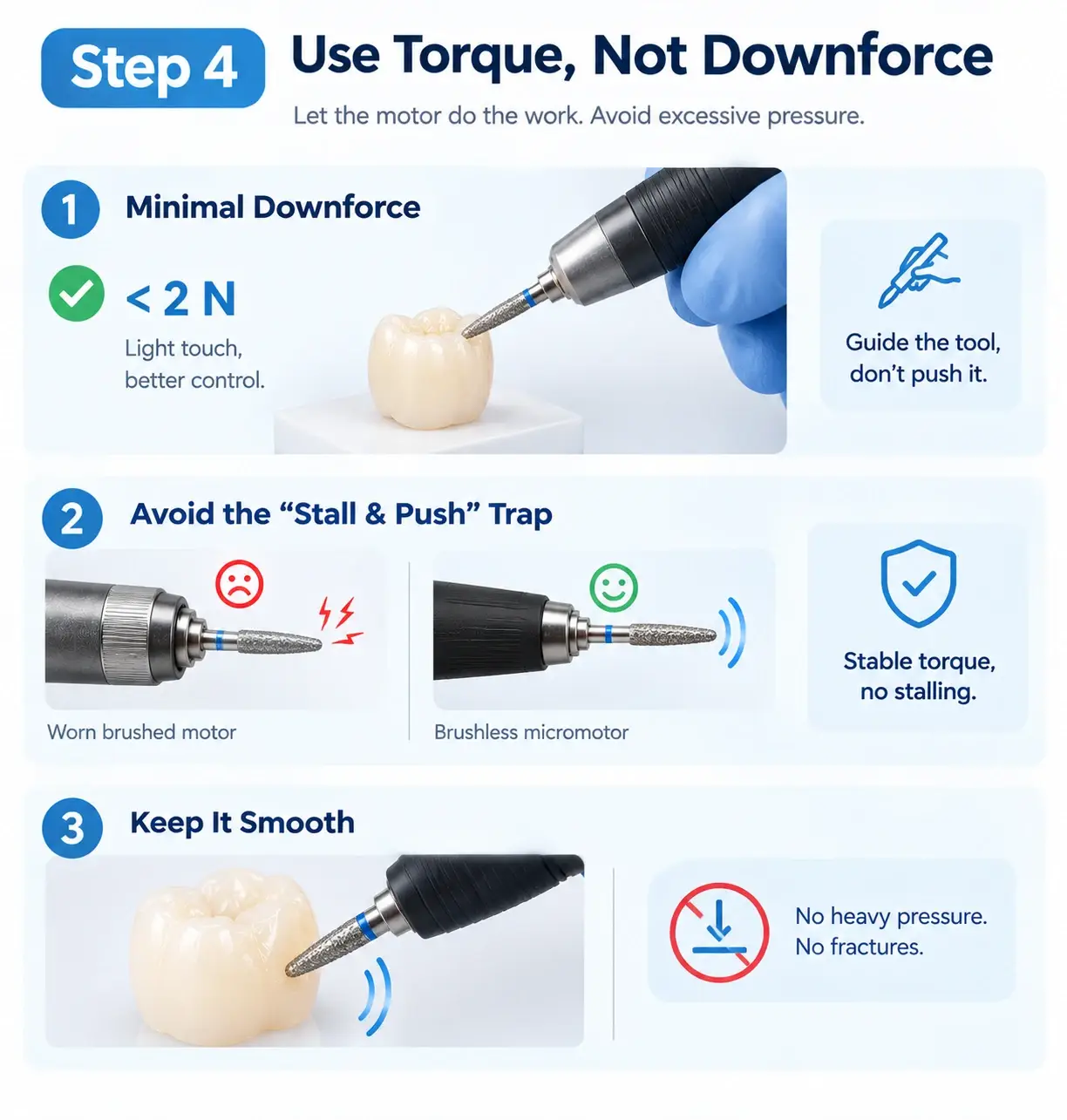

Step 4: Use Torque, Not Downforce


Aggressive downward pressure does not cut zirconia—it fractures it.

1. Minimal Downforce (< 2 N): Let the sharp diamond grit and the continuous rotational energy of the motor perform the reduction. Your hand should guide the position, not crush the tool into the crown.
2. The "Stall & Push" Trap: Inexpensive or worn brushed motors lose torque rapidly at low RPMs. When the bur bogs down in the cut, technicians instinctively bear down harder to keep it spinning. This sudden surge in shear force instantly snaps delicate margin lines.
3. Brushless Stability: Modern brushless micromotors deliver smooth, consistent torque across low-speed ranges. The handpiece will not stall under light contact, eliminating the urge to muscle through the material.

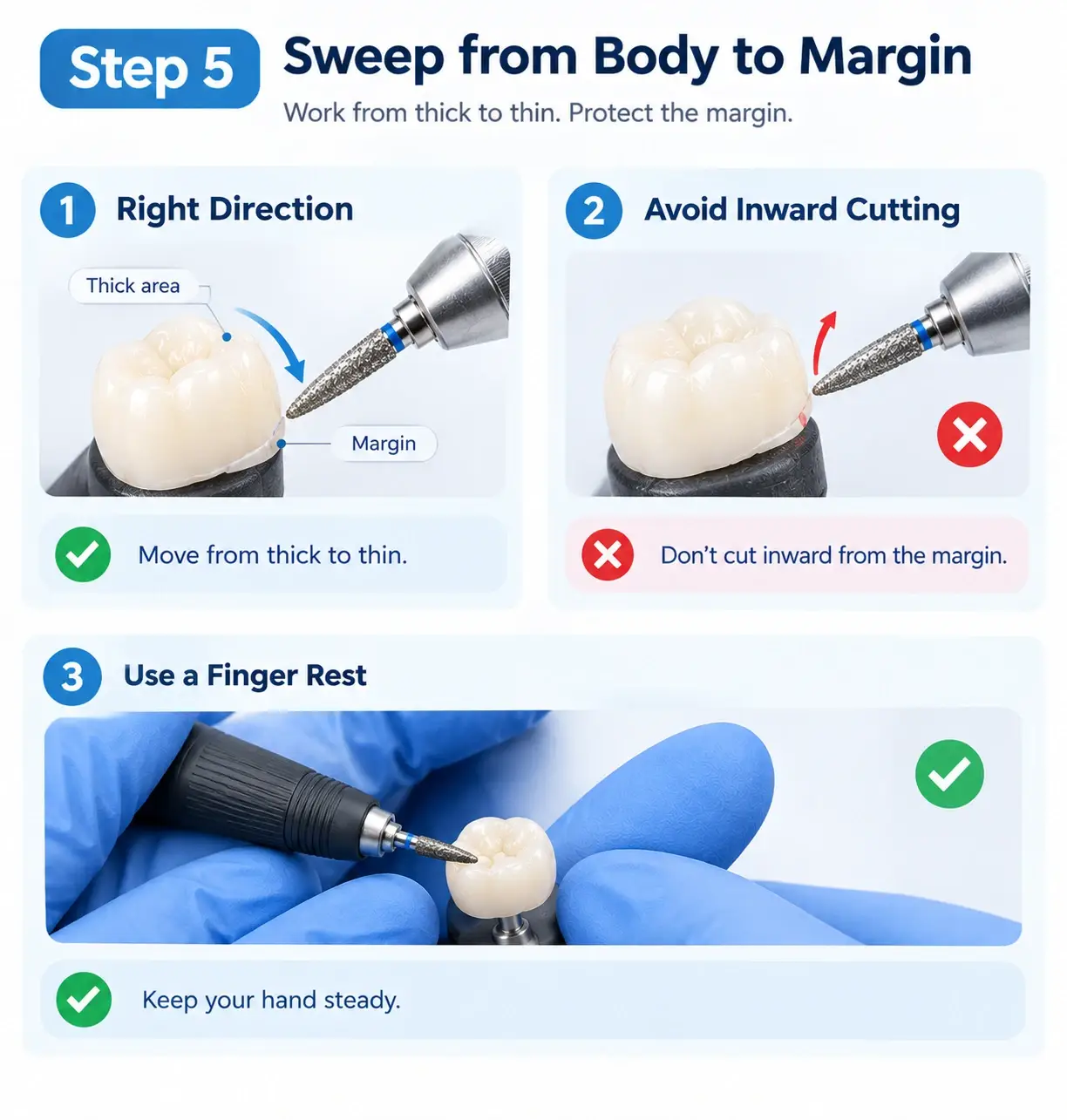

Step 5: Sweep from Body to Margin


Direction of cut dictates how force transfers through brittle crystalline structures. The golden rule: always guide the bur from thick ceramic toward thin ceramic.

1. Stroke Direction: Move your spinning bur from the thicker axial wall or cusp toward the margin edge. This orientation braces the ceramic behind the cut.
2. Stroke Direction: Move your spinning bur from the thicker axial wall or cusp toward the margin edge. This orientation braces the ceramic behind the cut.
3. Avoid Counter-Cutting: Never sweep inward from outside the margin toward the crown body. An inward cut catches the razor-thin ceramic lip, lifting the edge and flaking off chips along the margin.
4. Finger Rest Anchorage: Always lock your pinky or ring finger firmly against the crown-holding peg or your opposing hand. Freehand grinding without a finger fulcrum leads to tool skips, immediately notching fragile margins.

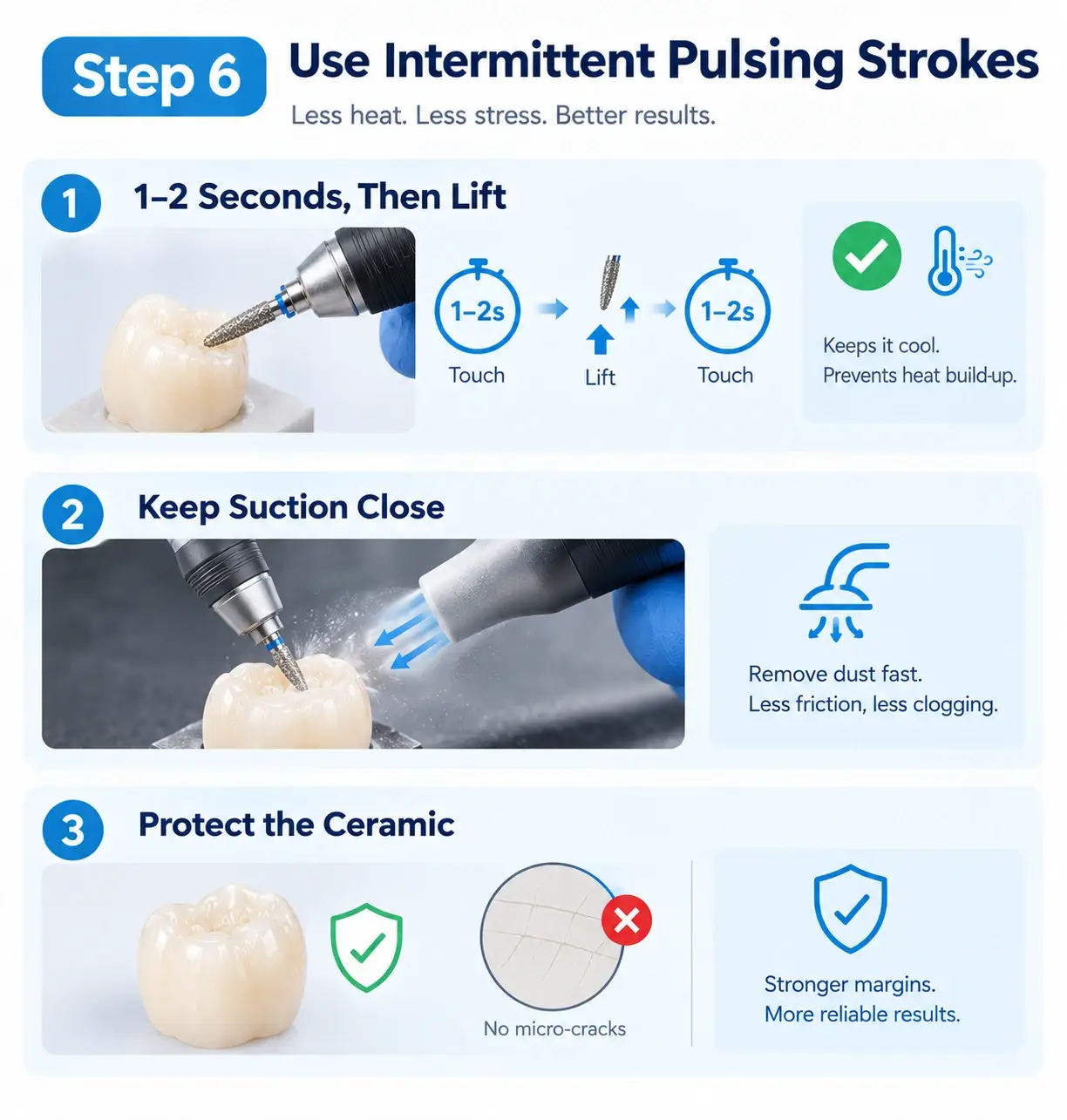

Step 6: Use Intermittent Pulsing Strokes


Continuous, static grinding concentrates heat in one zone, causing thermal shock and invisible subsurface fissures that break open later during glazing or clinical cementation.

1. 1-to-2-Second Contact: Touch the surface for one to two seconds, lift briefly, and touch again. This intermittent "feathering" motion allows the surrounding air stream to dissipate interfacial heat.
2. Dust Collector Alignment: Keep your benchtop suction inlet close to your contact point. Rapidly extracting ceramic dust prevents the bur from regrinding loose particles, which spikes friction and accelerates bur clogging.
3. Micro-Crack Prevention: Pulsed contact preserves the integrity of the bulk ceramic, ensuring the restoration survives firing cycles without unexpected stress fractures.

The Zero-Chipping Standard

1. High concentricity (≤0.02 mm runout) to stop high-frequency micro-hammering.
2. Dedicated diamond abrasives seated deep in the collet.
3. 8,000–12,000 RPM to avoid phase transformations.
4. Body-to-margin stroke vectors to eliminate edge tear-out.
5. Zero excessive downforce, relying strictly on motor torque.
